690V Static Var Generator (SVG)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 120kvar
- Reactive Power Compensation Rate : ＞95%
- Machine Efficiency : >97%
- Installation: Rack-mounted, Wall-mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview
The Static Var Generator (SVG)is an advanced reactive power compensation device based on a power electronic converter.Its basic principle is to connect a voltage-source converter in parallel with the grid through an inductor,adjusting the phase and amplitude of the converter's AC-side output voltage to absorb or supply the required reactive current.This enables dynamic reactive power compensation and provides an optimal solution in the field of power quality management.
SVG 690V Technical Specification
|
SVG 690V Series |
||||
|
Altitude |
<2000m,Usage should be de-rated according to the international standard IEC3859-2 for altitudes above 2000 meters. |
|||
|
Ambient Temperature |
-10~+50℃ (Derated above 40℃) |
|||
|
Relative Humidity |
≤90%,monthly minimum temperature 25℃,no condensation on the surface |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC690V(-20%~+15%) |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz~63Hz) |
|||
|
Rated Compensation Capacity |
120kvar |
|||
|
Power Grid Structure |
Three-Phase Three-Wire,Three-Phase Four-Wire |
|||
|
Numbers in Parallel |
Unlimited |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
12.8kHz |
|||
|
Function Selection |
ReactivePower,ReactivePower+Unbalanced |
|||
|
Full Response Time |
<10ms |
|||
|
Noise |
≤65dB |
|||
|
Communication |
2*RS485 Communication Ports(Supports GPRS/WIFI) |
|||
|
Protection |
Overload, Software/Hardware Overcurrent, Grid Over/UnderVoltage, Voltage Imbalance, Power Supply Fault Overtemperature, Frequency Abnormality, Short Circuit Protection |
|||
|
Installation |
Rack-Mounted |
|||
|
Entry Line Method |
Rear Line |
|||
|
Protection Level |
IP20 |
|||

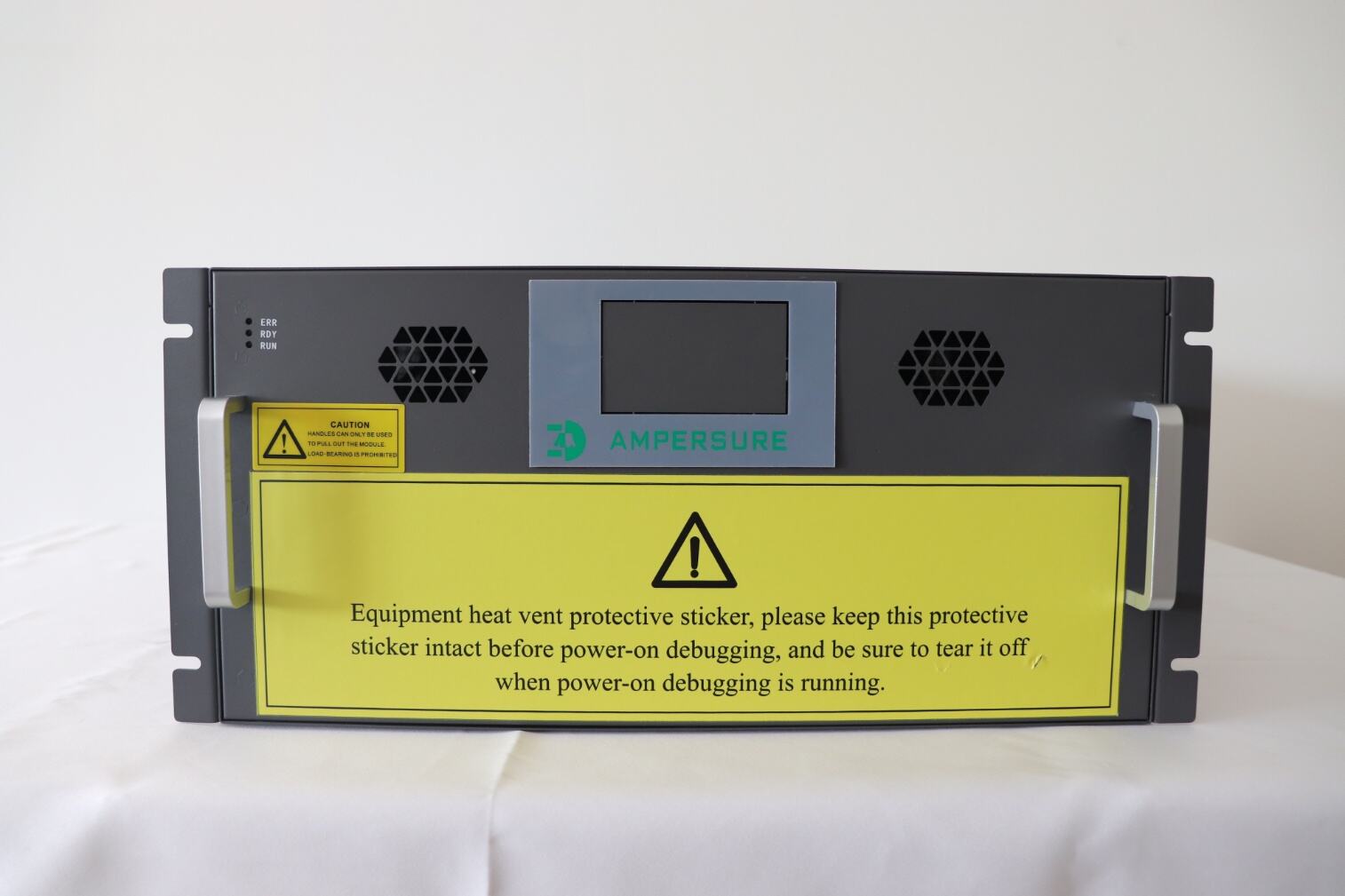

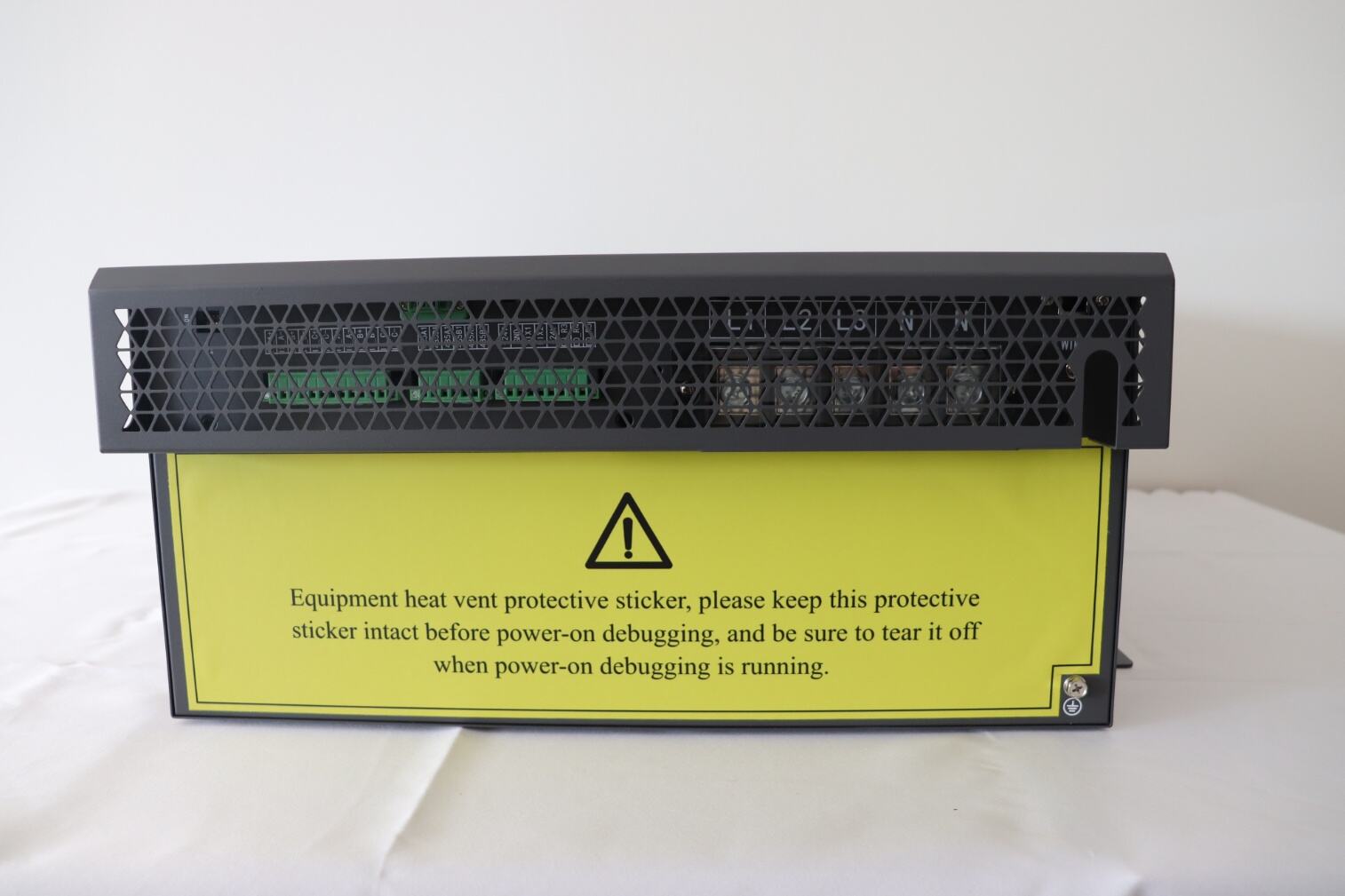

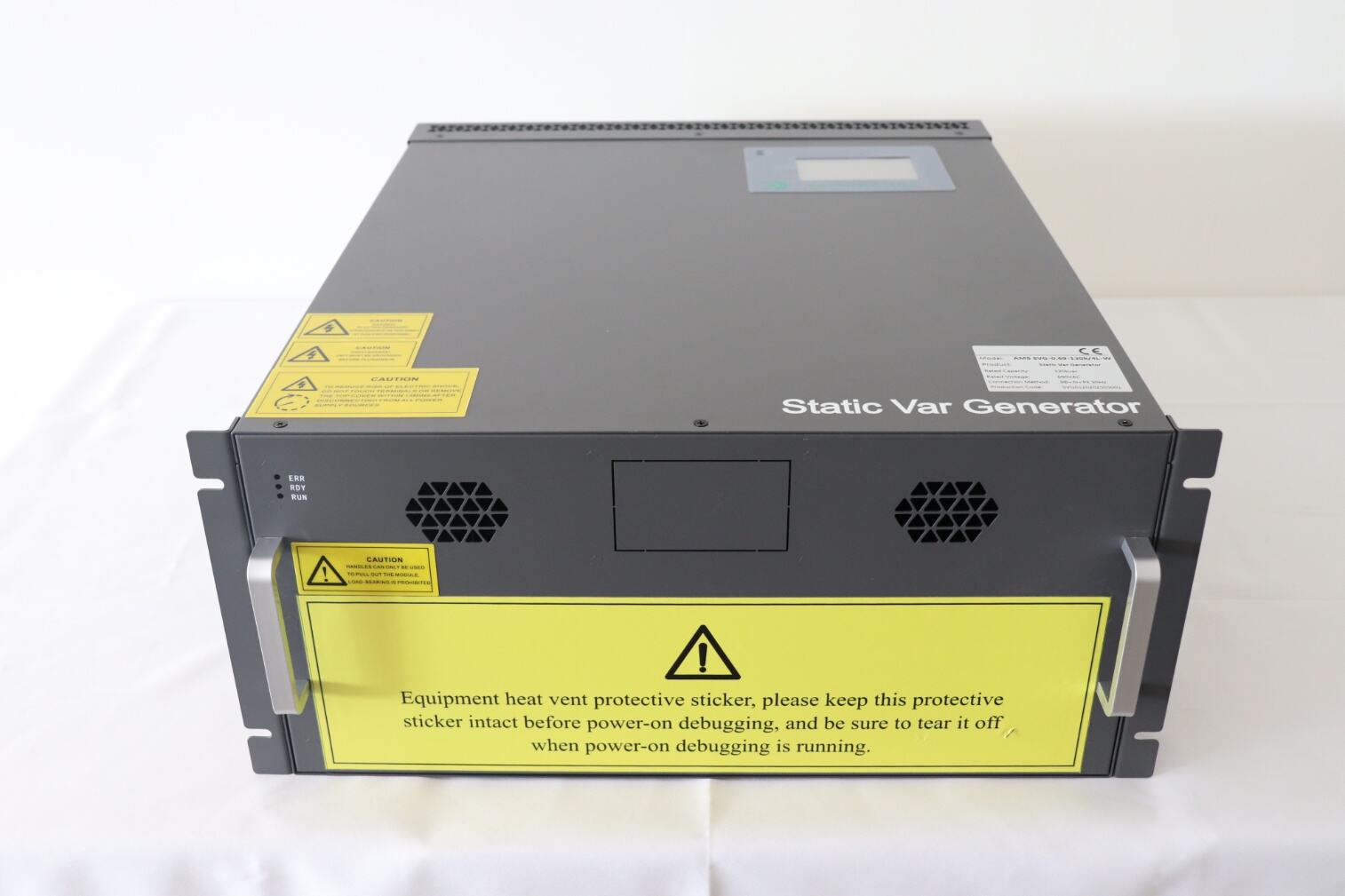

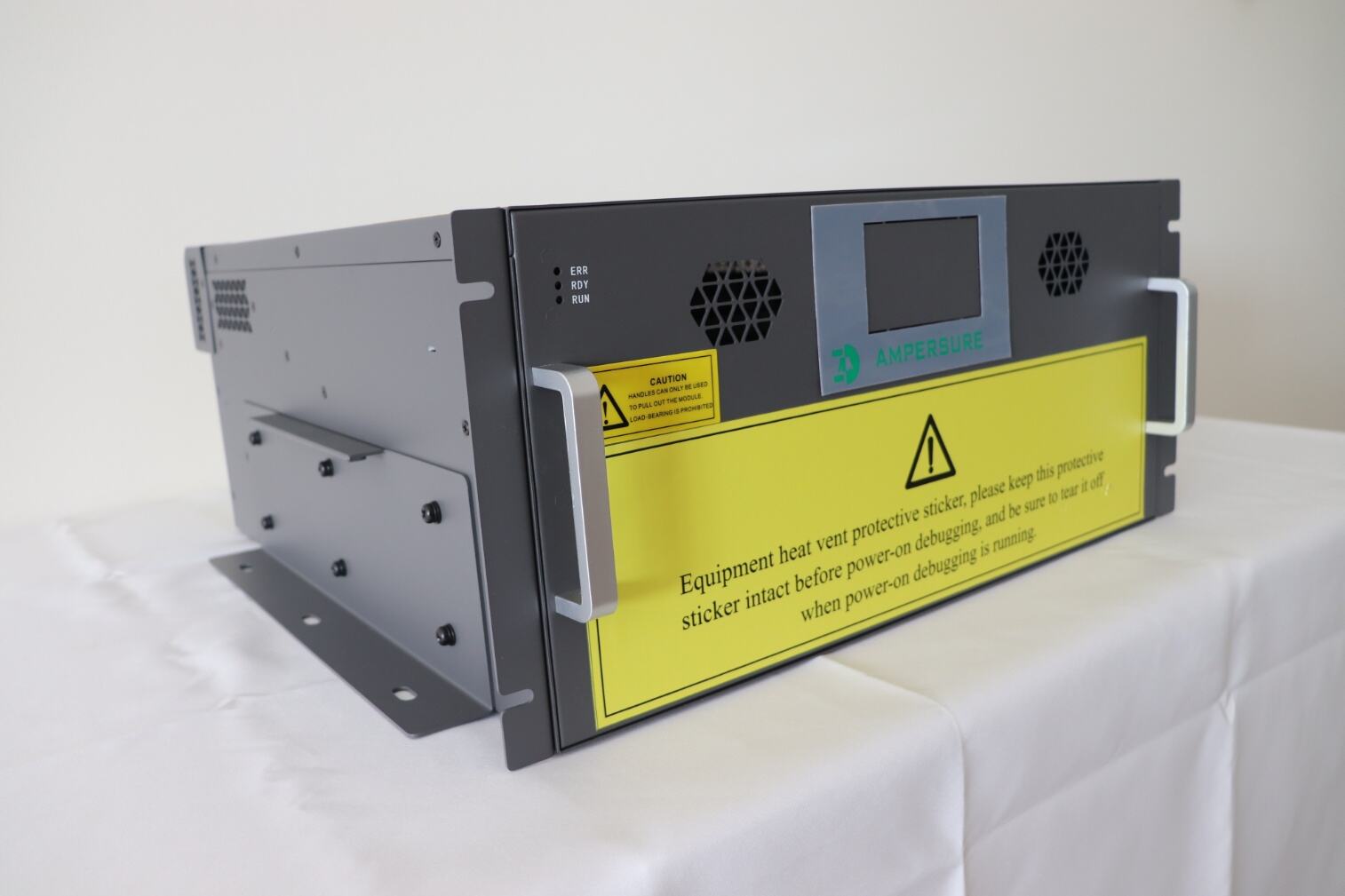

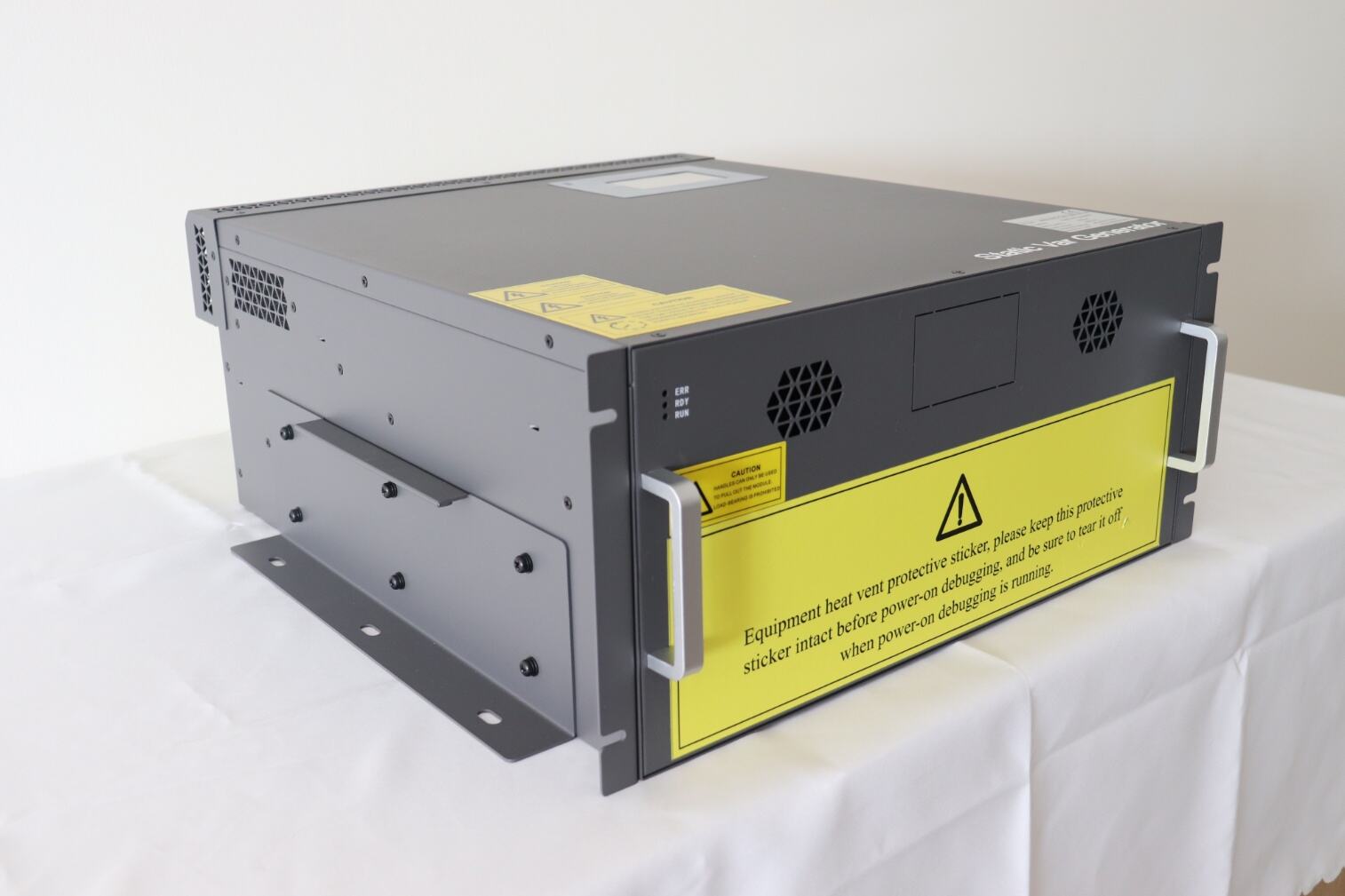

SVG 690V Product Appearance
|
Module model |
||||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
AMS SVG-0.69-120k/4L-R |
120 |
690 |
495*675*275 |
Forced Air Cooling |
|
Cabinet model |
||||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
AMS sVG-0.69-240k/4L-C |
240 |
690 |
1000*1000*2200 |
Forced Air Cooling |
|
AMS SVG-0.69-360k/4L-C |
360 |
690 |
1000*1000*2200 |
Forced Air Cooling |
|
AMS SVG-0.69-480k/4L-C |
480 |
690 |
1000*1000*2200 |
Forced Air Cooling |
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
