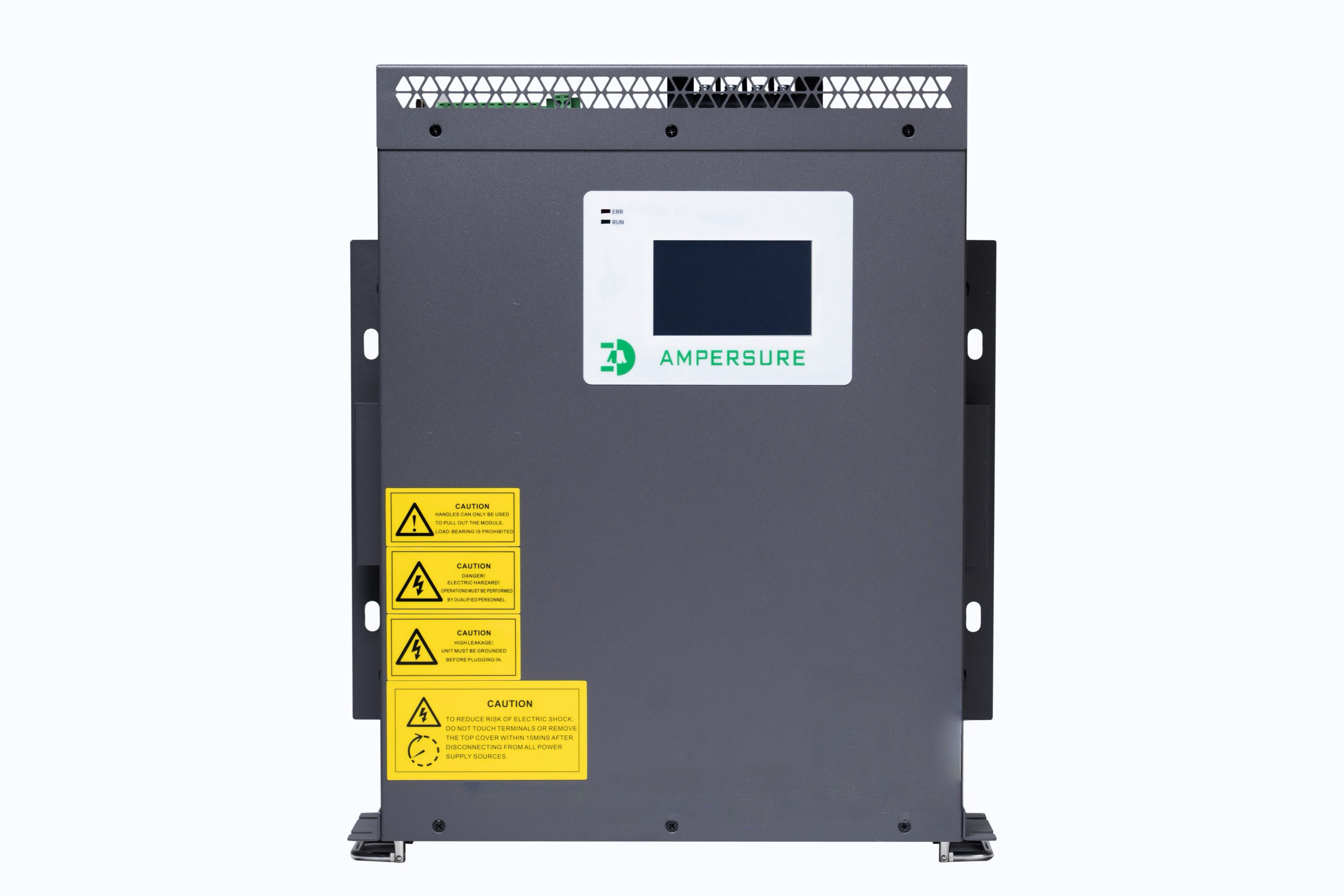

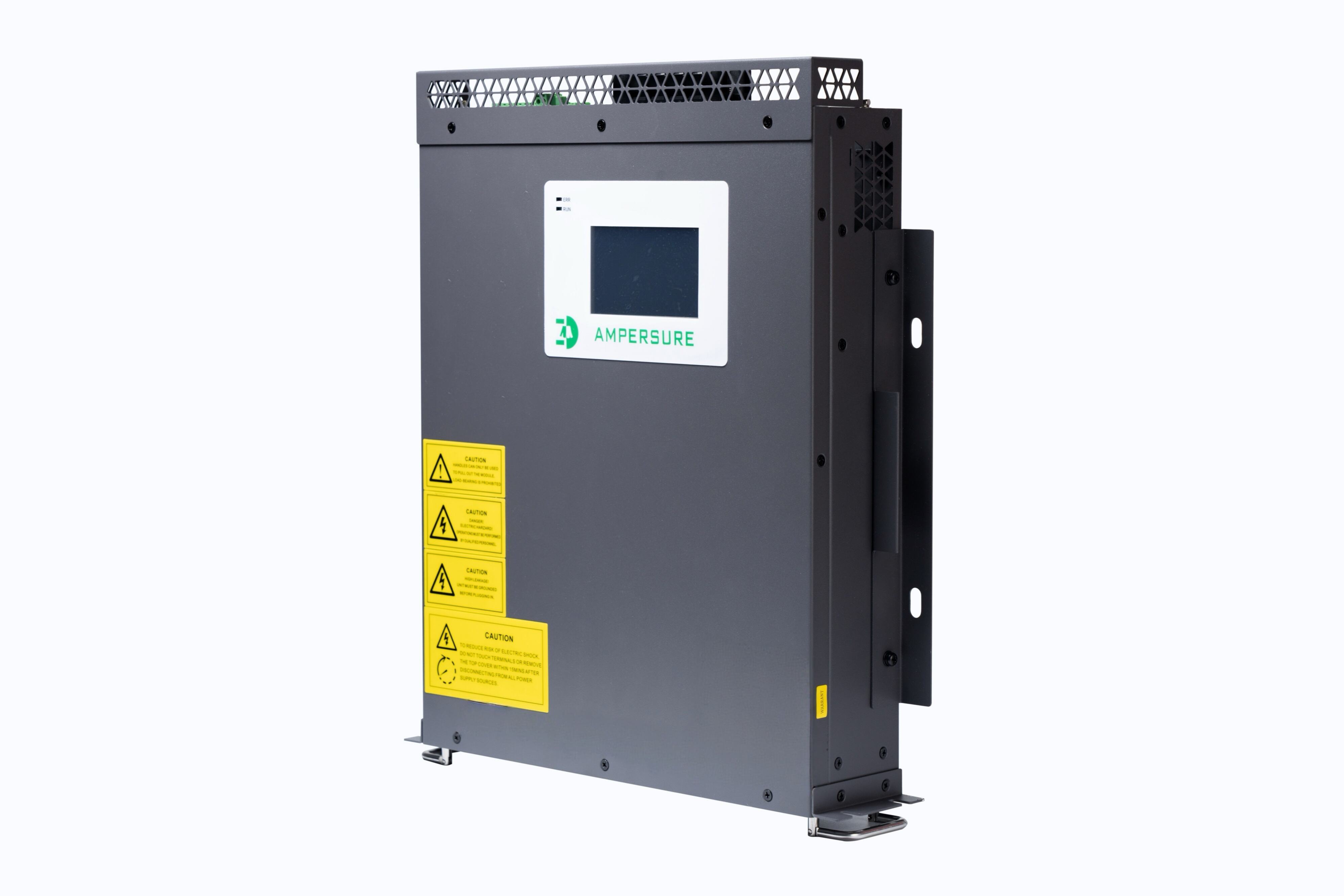

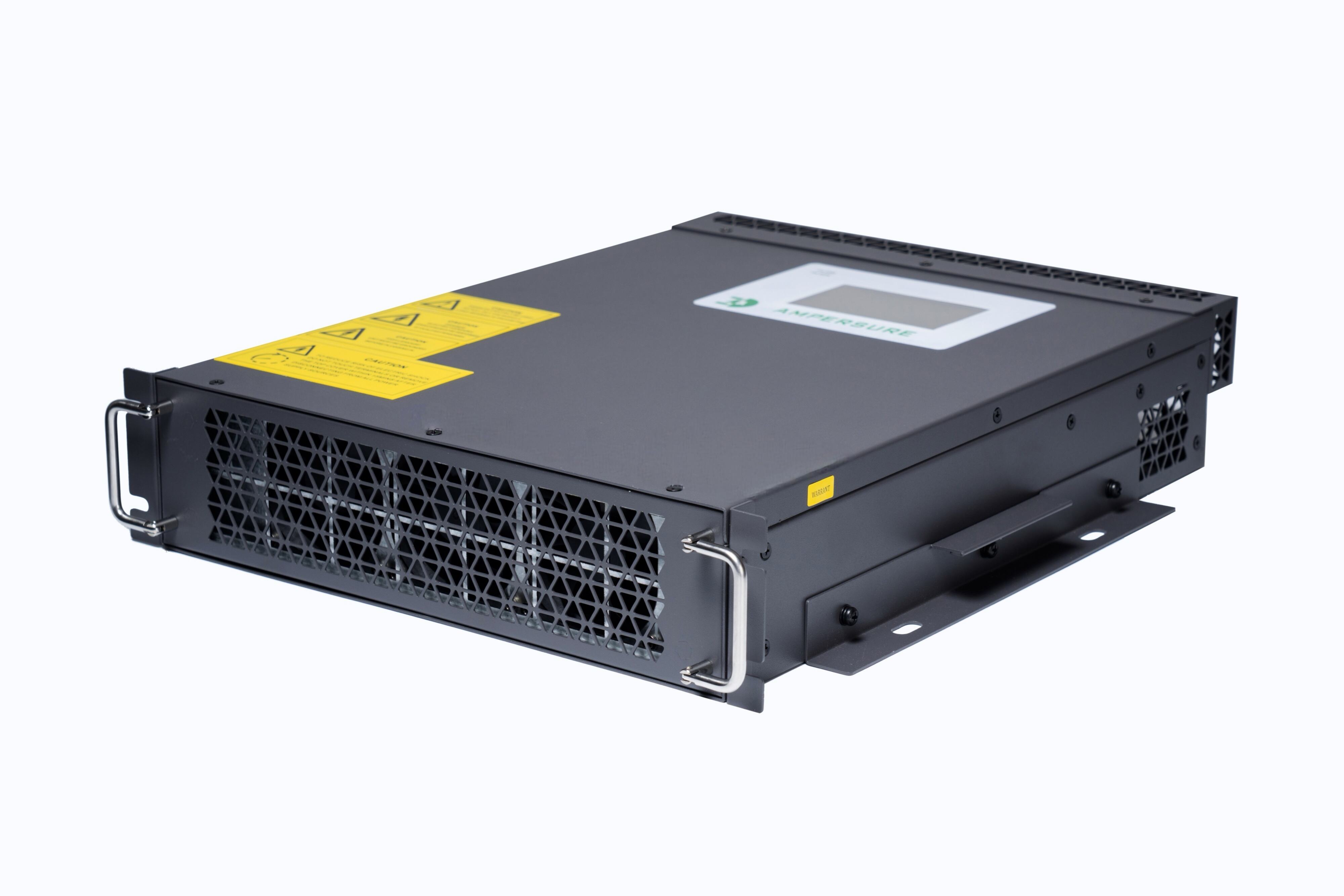

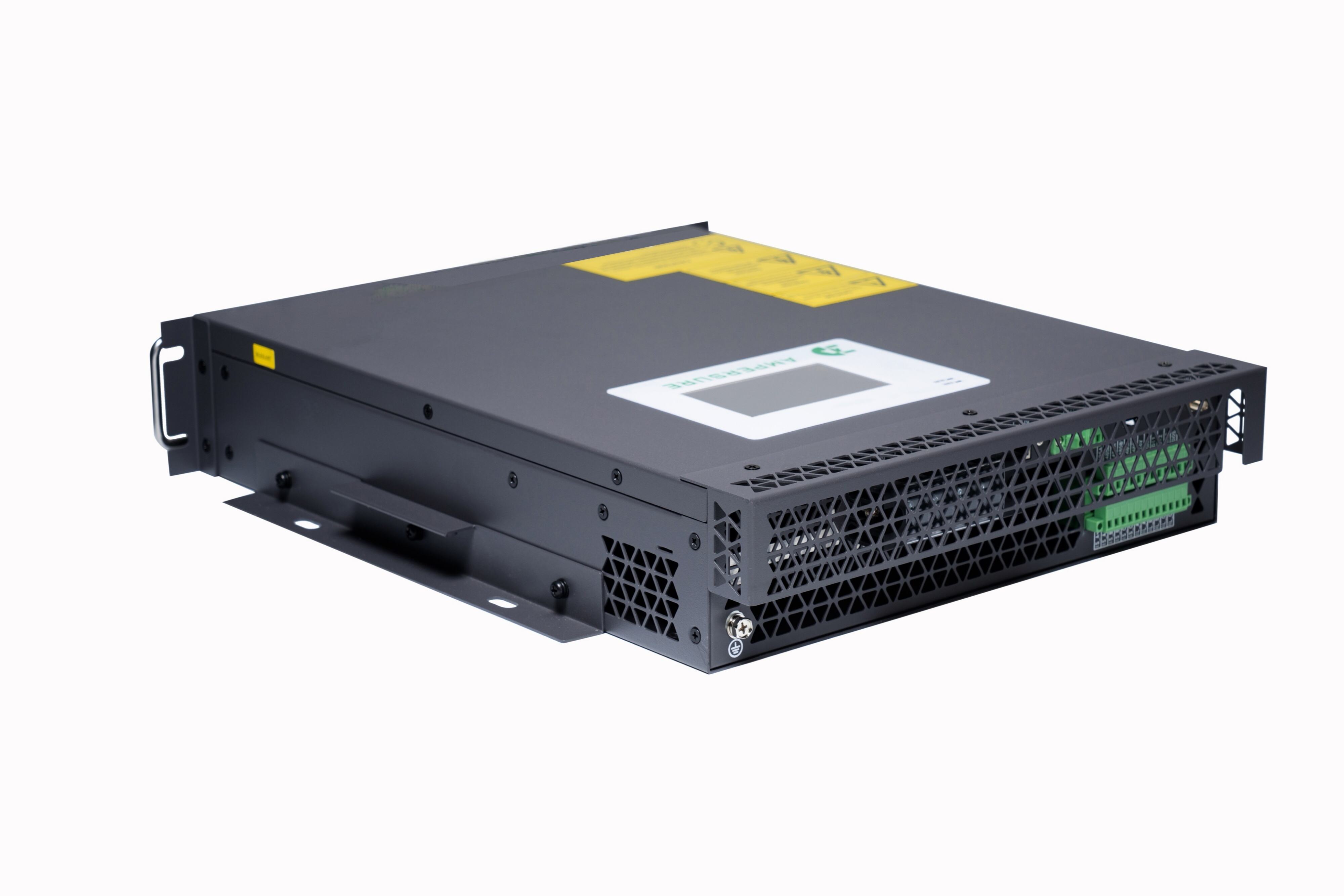

220V Static Var Generator (SVG)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 5kvar
- Reactive Power Compensation Rate : ＞99%
- Machine Efficiency : >97%
- Installation: Rack-mounted, Wall-mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview
The Static Var Generator (SVG)is an advanced reactive power compensation device based on a power electronic converter.Its basic principle is to connect a voltage-source converter in parallel with the grid through an inductor,adjusting the phase and amplitude of the converter's AC-side output voltage to absorb or supply the required reactive current.This enables dynamic reactive power compensation and provides an optimal solution in the field of power quality management.
SVG 220V Technical Specification
|
SVG 220V Series |
||||
|
Altitude |
<2000m,Usage should be de-rated according to the international standard IEC3859-2 for altitudes above 2000 meters. |
|||
|
Ambient Temperature |
-10~+50℃ (Derated above 40℃) |
|||
|
Relative Humidity |
≤90%,monthly minimum temperature 25℃,no condensation on the surface |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC220V (-20%~+20%) |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz~63Hz) |
|||
|
Rated Compensation Capacity |
5kvar |
|||
|
Power Grid Structure |
L/N |
|||
|
Numbers in Parallel |
Not supported |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
32kHz |
|||
|
Function Selection |
Reactive Power |
|||
|
Full Response Time |
<10ms |
|||
|
Noise |
≤60dB |
|||
|
Communication |
2*RS485 Communication Ports(Supports GPRS/WIFI) |
|||
|
Protection |
Overload Software/Hardware Overcurrent. Grid Over/Under Voltage, Power Supply Fault, Overtemperature, Frequency Abnormality ShortCircuit Protection |
|||
|
Installation |
Rack-Mounted,Wall-Mounted |
|||
|
Entry Line Method |
Rear Inlet (rack-mounted), Top Inlet(wall-mounted) |
|||
|
Protection Level |
IP20 |
|||
SVG 220V Product Appearance
|
Module model |
||||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
AMS SVG-0.22-5k/2L-R |
5 |
220 |
220*330*160 |
Forced Air Cooling |
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
