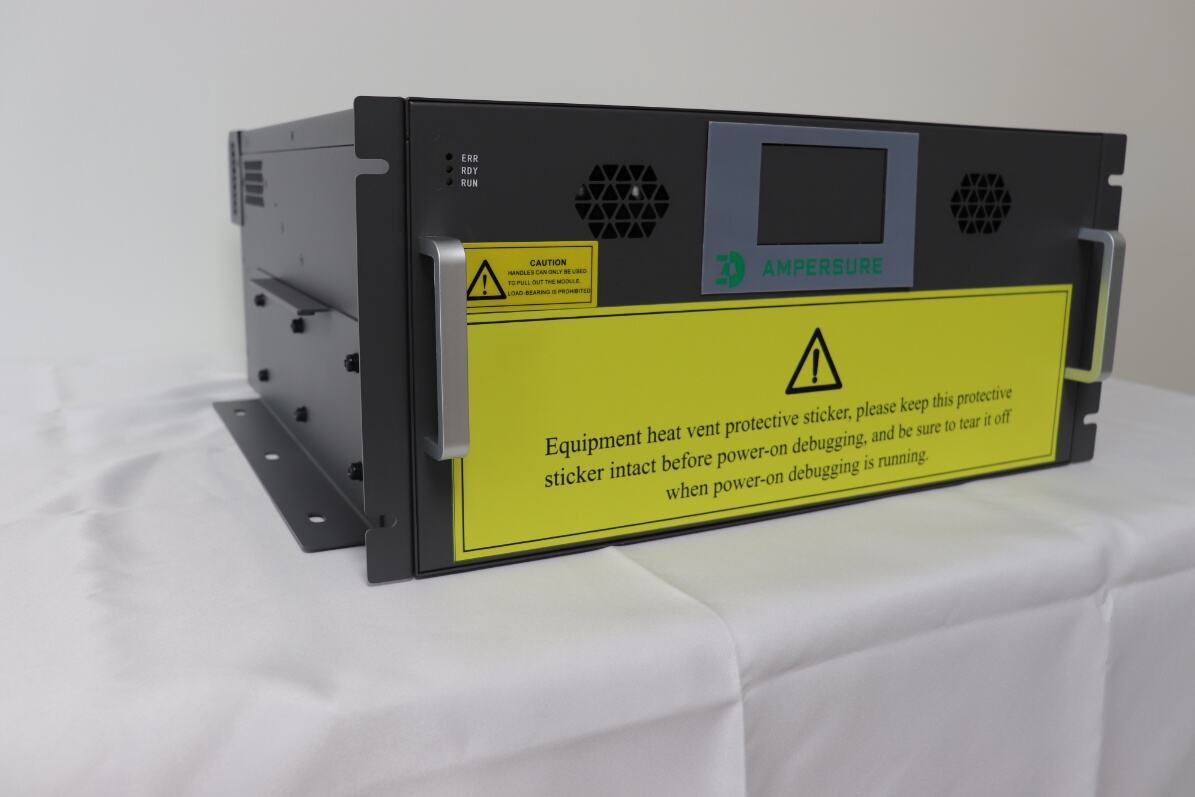

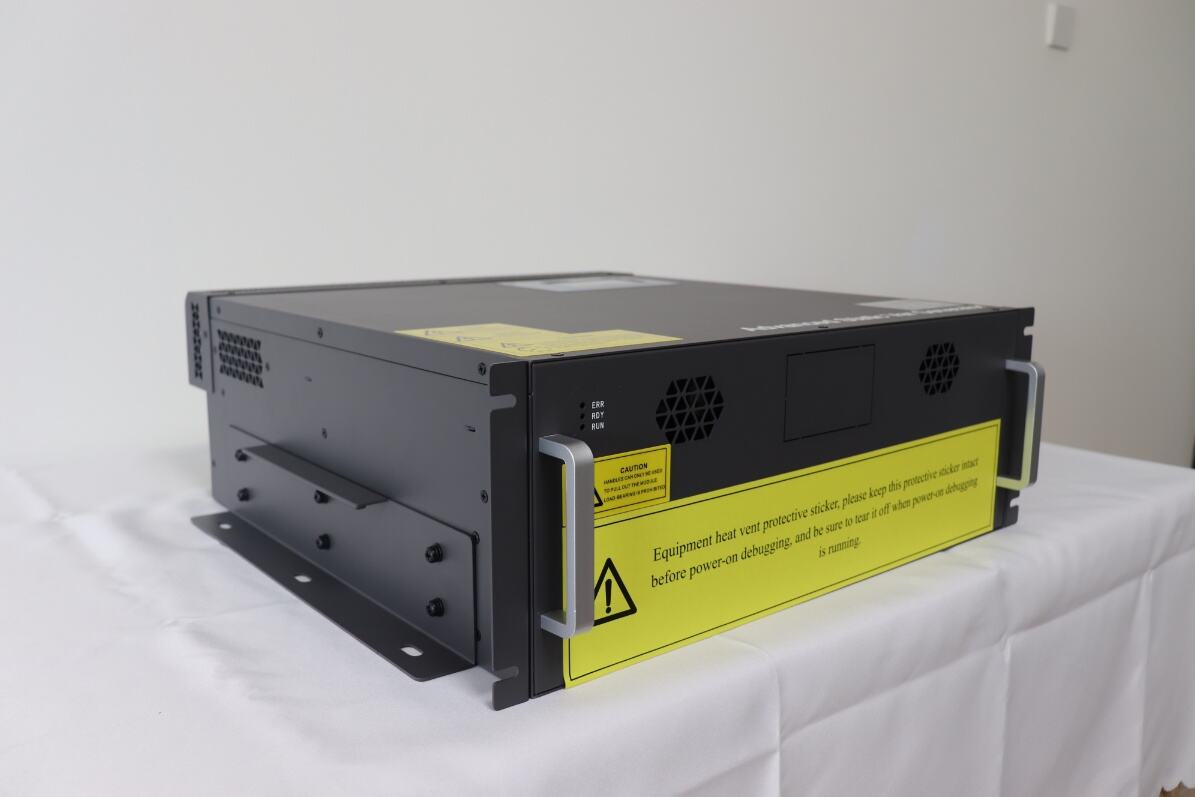

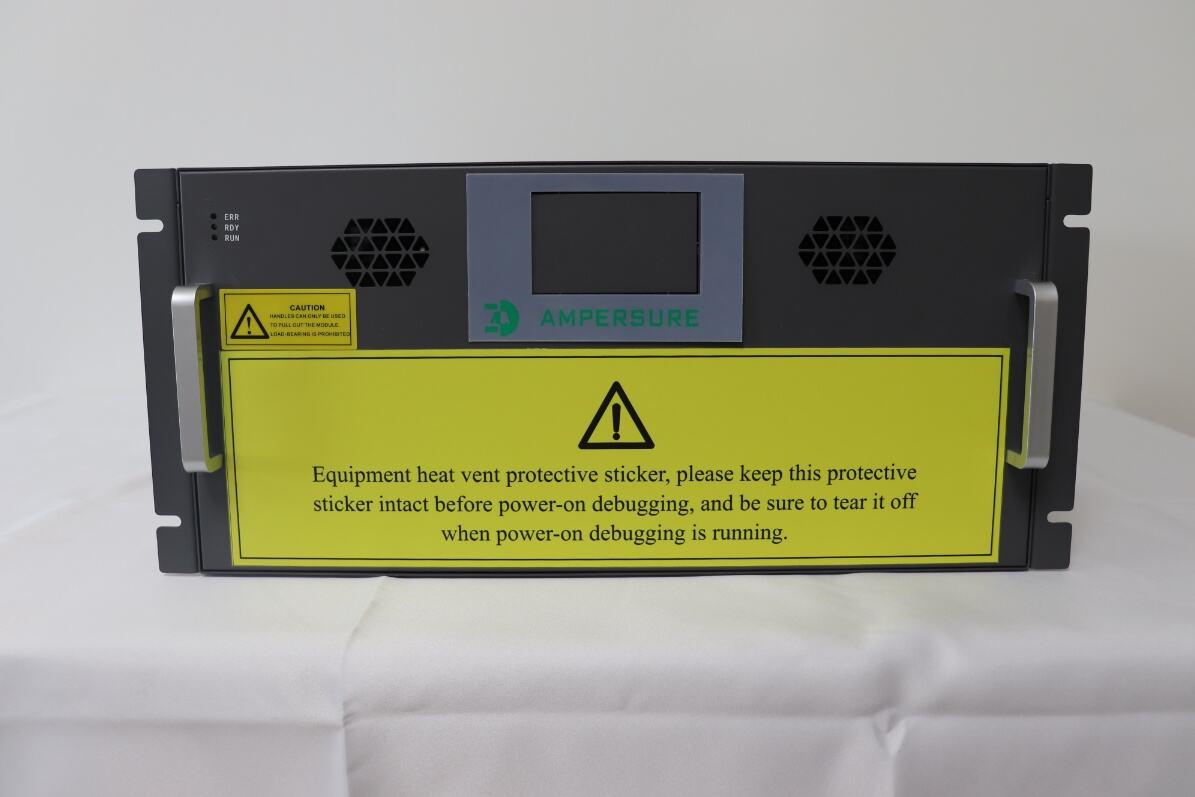

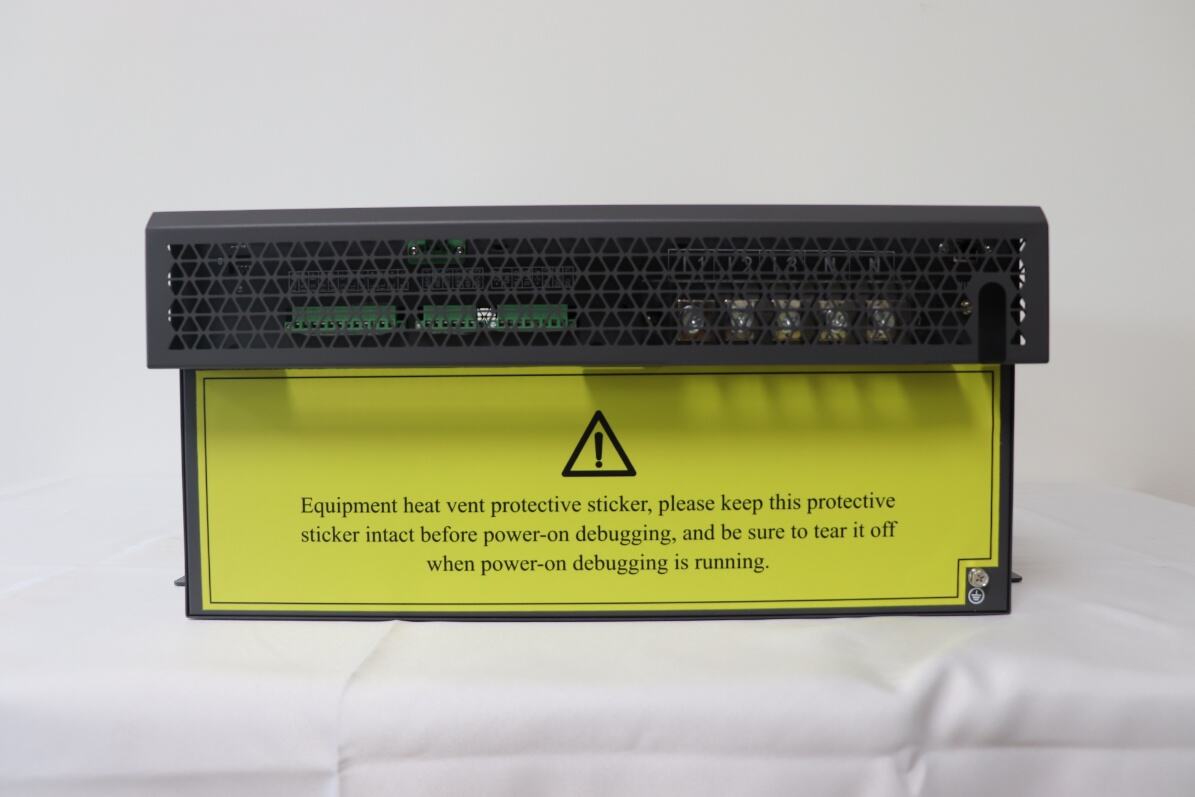

690V Advanced Static Var Generator (ASVG)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 120kvar
- Reactive Power Compensation Rate : ＞95%
- Machine Efficiency : >97%
- Installation: Rack-mounted, Wall-mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview

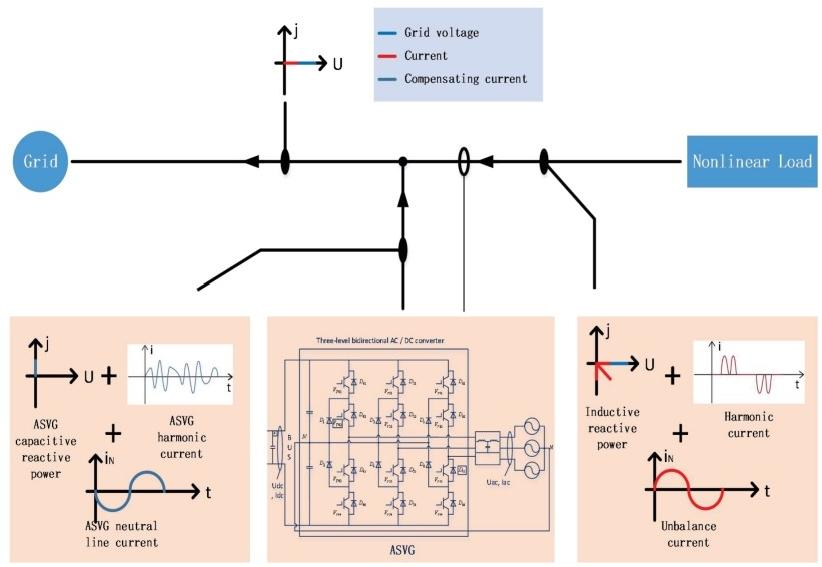

Advanced Static Var Generator (ASVG)is a novel current-type power quality management device.It adjusts the phase and amplitude of the output voltage on the inverter's AC side by real-time monitoring of the load current.This allows it to provide precise,simultaneous compensation for system reactive power,harmonics,and three-phase unbalanced currents.The ASVG is characterized by its strong comprehensive compensation capabilities,fast response time,and high cost-effectiveness,making it a better solution in the field of power quality management.
ASVG 690V Technical Specification
|
ASVG 690V Series |
||||
|
Altitude |
<2000m,Usage should be de-rated according to the international standard IEC3859-2 for altitudes above 2000 meters. |
|||
|
Ambient Temperature |
-10°C to+50°C (derated above 40℃) |
|||
|
Relative Humidity |
≤90%,monthly minimum temperature 25℃,nocondensation on the surface |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC690V (-20%~+20%) |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz～63Hz) |
|||
|
Rated Compensation Capacity |
120kvar |
|||
|
Power Grid Structure |
Three-phase three-wire,Three-phase four-wire |
|||
|
Numbersin Parallel |
Unlimited |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
12.8kHz |
|||
|
Function Selection |
Reactive Power. Harmonics, ReactivePower+Harmonics, Harmonics+Reactive Power, Harmonics+Unbalance, Reactive Power+Unbalance, Harmonics+Unbalance+Reactive Power ReactivePower+Unbalance+Harmonics Self-Aging Reactive Power, |
|||
|
Full Response Time |
<40ms |
|||
|
Noise |
≤65dB |
|||
|
Communication |
2*RS485 Communication Ports(Supports GPRS/WIFI) |
|||
|
Protection |
Overload, software/hardware over current, power grid overvoltage/under voltage, Voltage Unbalance, power failure. over-temperature, frequency abnormality, short circuit protection |
|||
|
Installation |
Rack-Mounted |
|||
|
Entry Line Method |
Rear Inlet |
|||
|
Protection Level |
IP20 |
|||

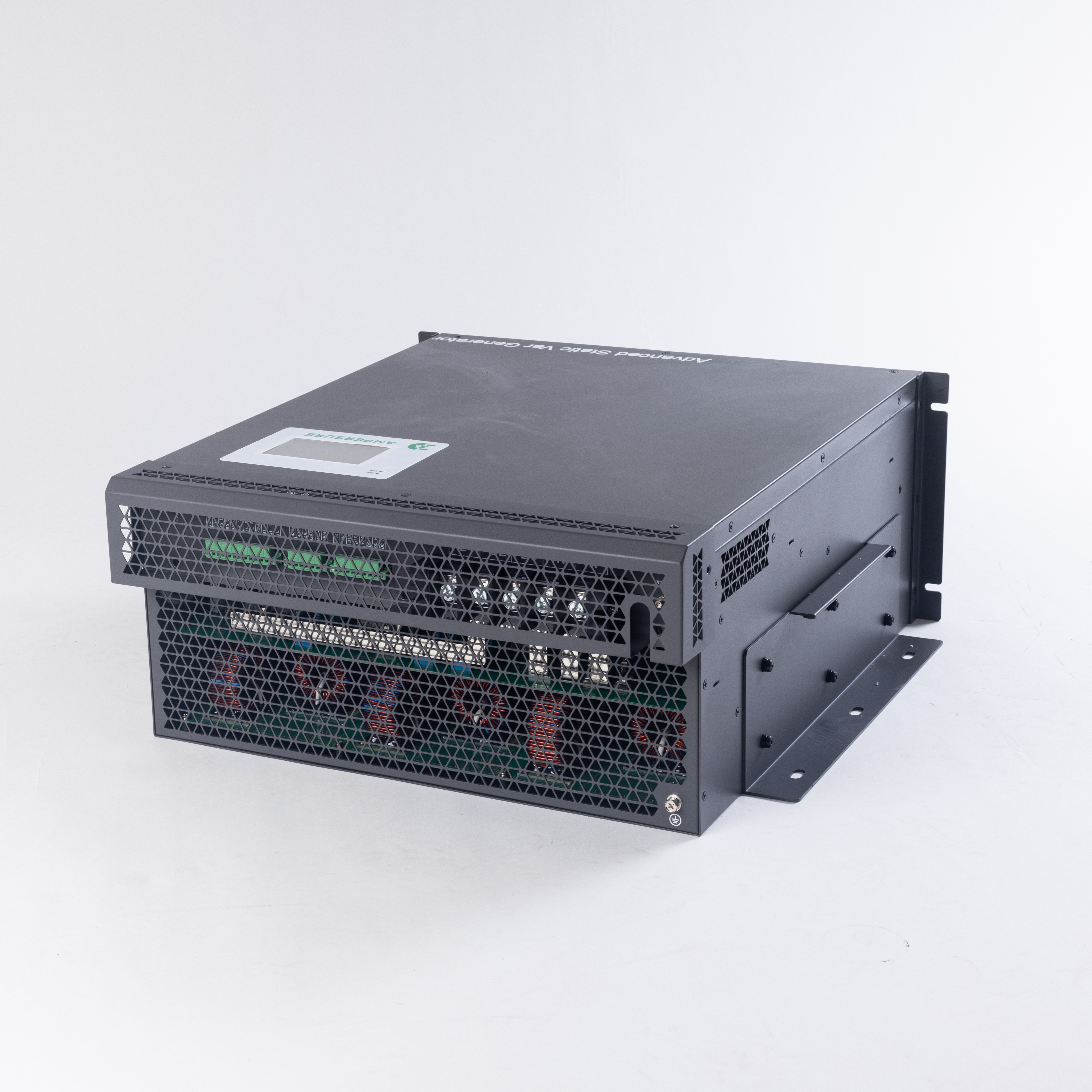

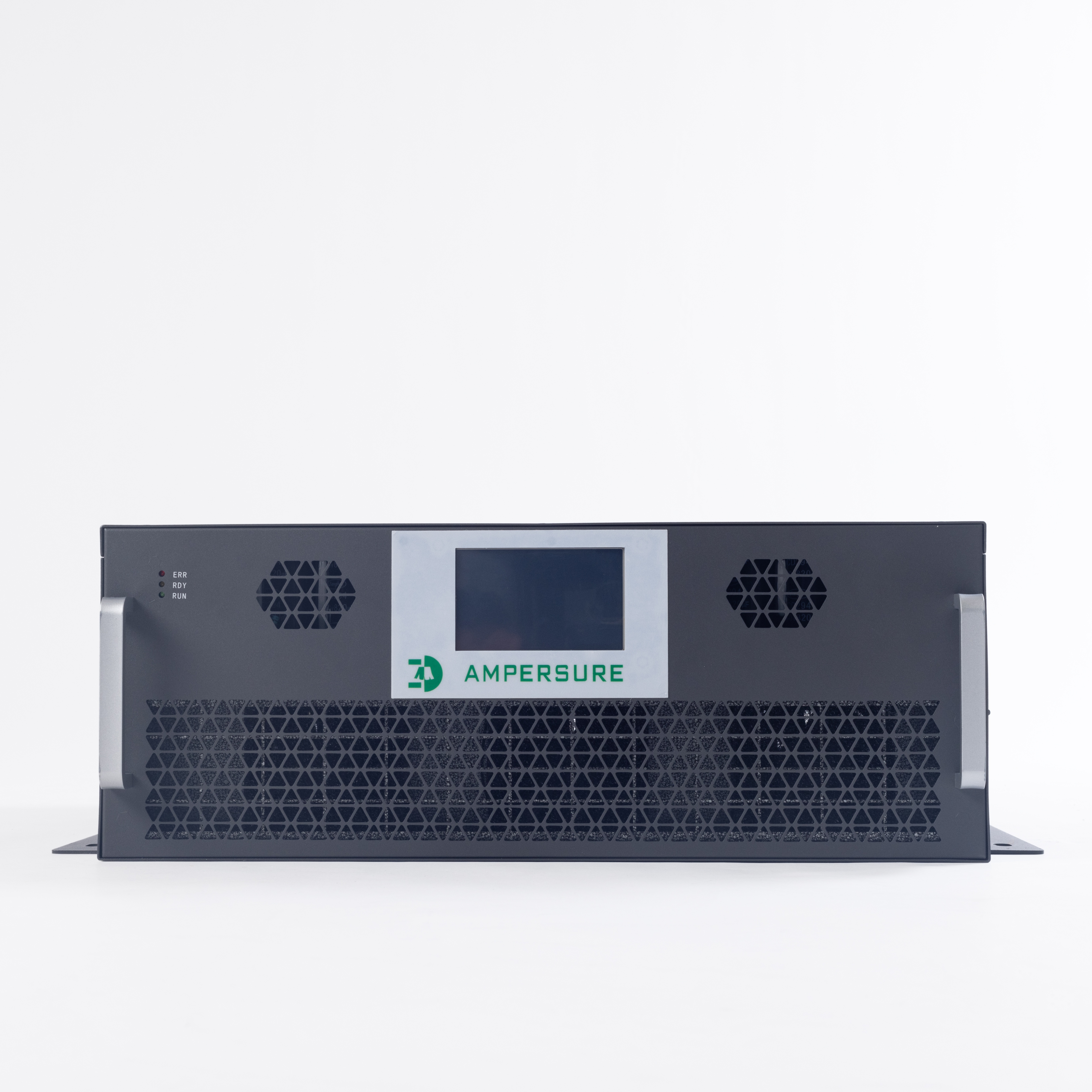

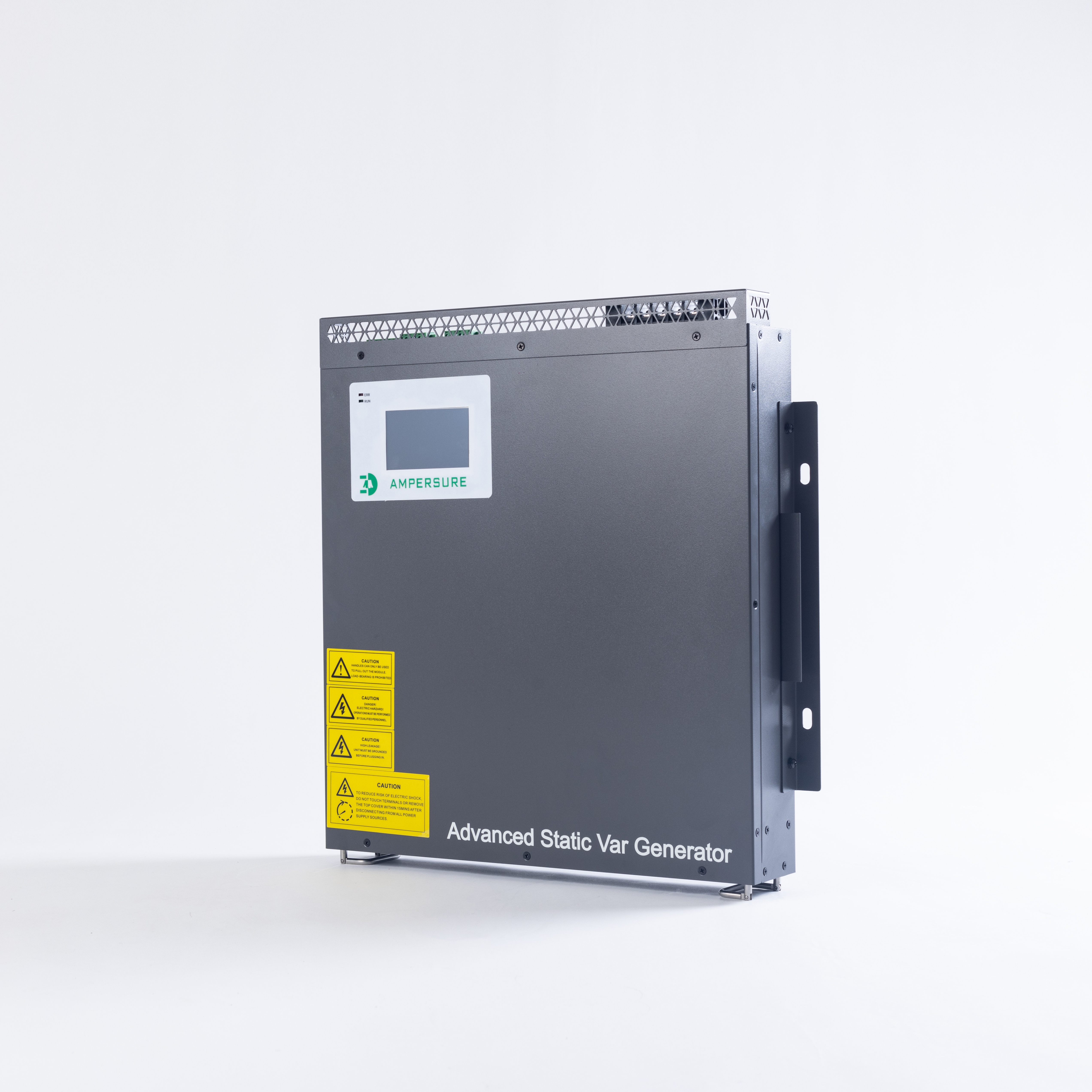

ASVG 690V Product Appearance
|
Module model |
||||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
CoolingSystem |
|
AMSASVG-0.69-120k/4L-R(W) |
120 |
690 |
495*675*275 |
Forced Air Cooling |
|
Cabinet model |
||||
|
Models |
Compensation Capacity (kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
CoolingSystem |
|
AMS ASVG-0.69-240k/4L-C |
240 |
690 |
1000*1000*2200 |
Forced Air Cooling |
|
AMS ASVG-0.69-360k/4L-C |
360 |
690 |
1000*1000*2200 |
Forced Air Cooling |
|
AMS ASVG-0.69-480k/4L-C |
480 |
690 |
1000*1000*2200 |
Forced Air Cooling |
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
