500V Active Harmonic Filter (AHF)
-Rated Frequency: 45Hz-63Hz
-Compensating Current: 100A
-Harmonic Compensation Rate: >92%
-Efficiency: >97%
-Installation: Rack-mounted, Wall-mounted
- Overview
- Specification

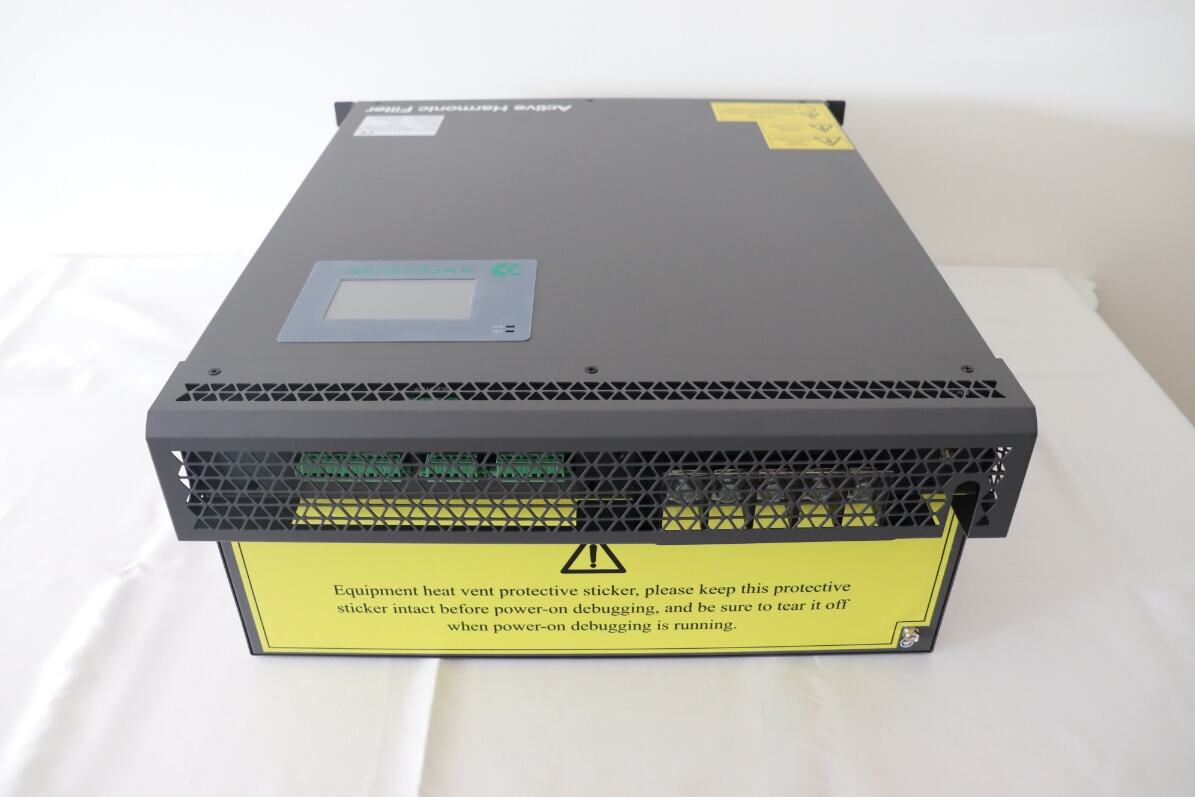

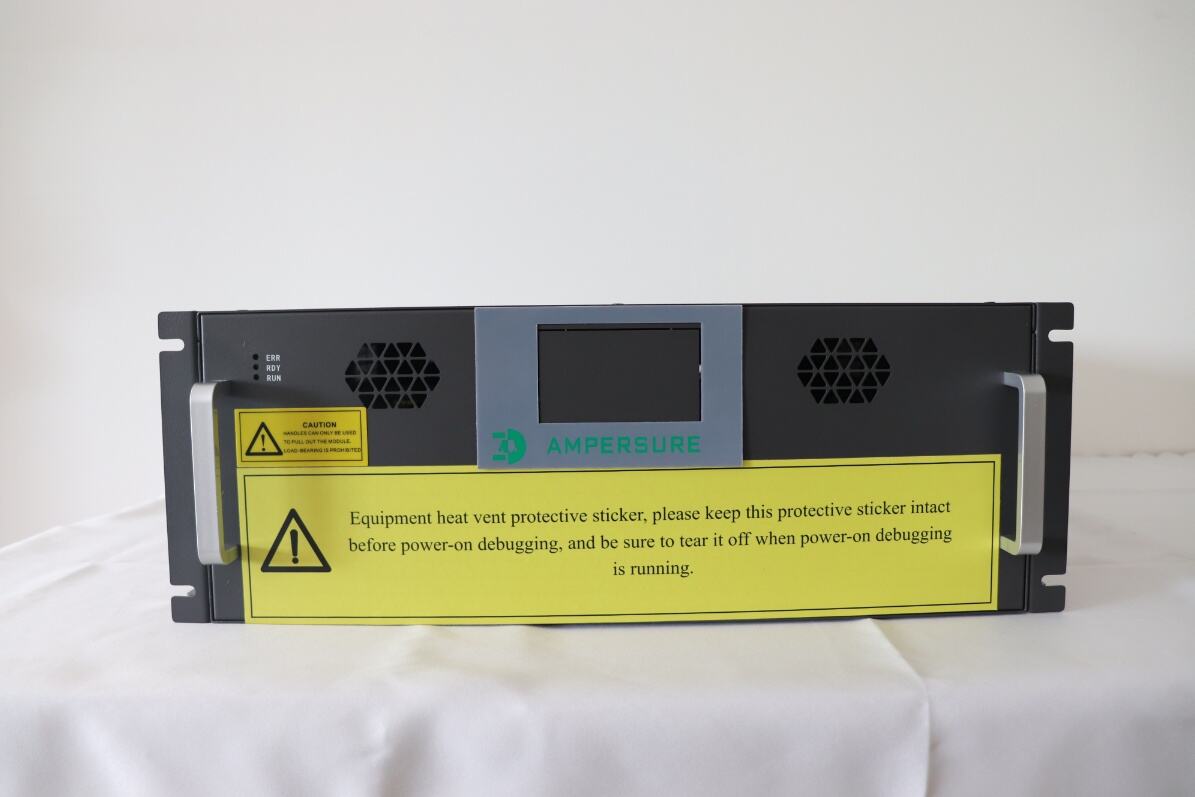

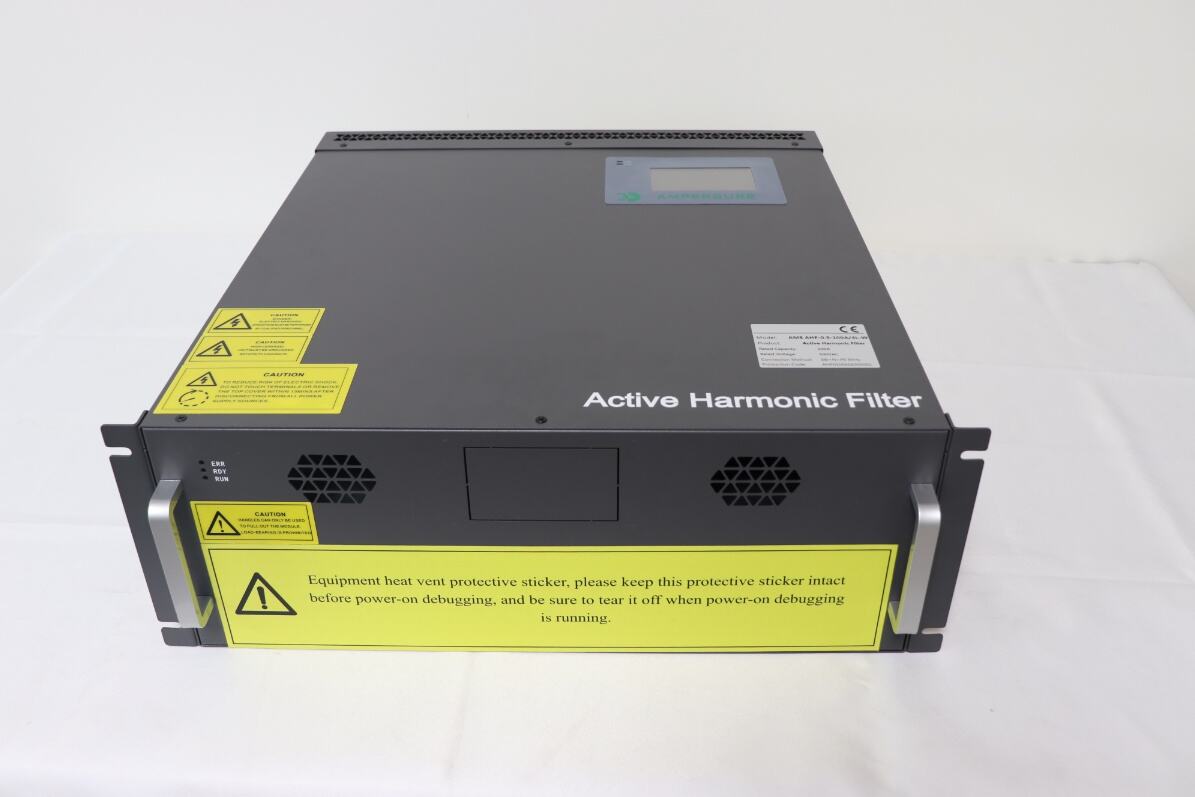

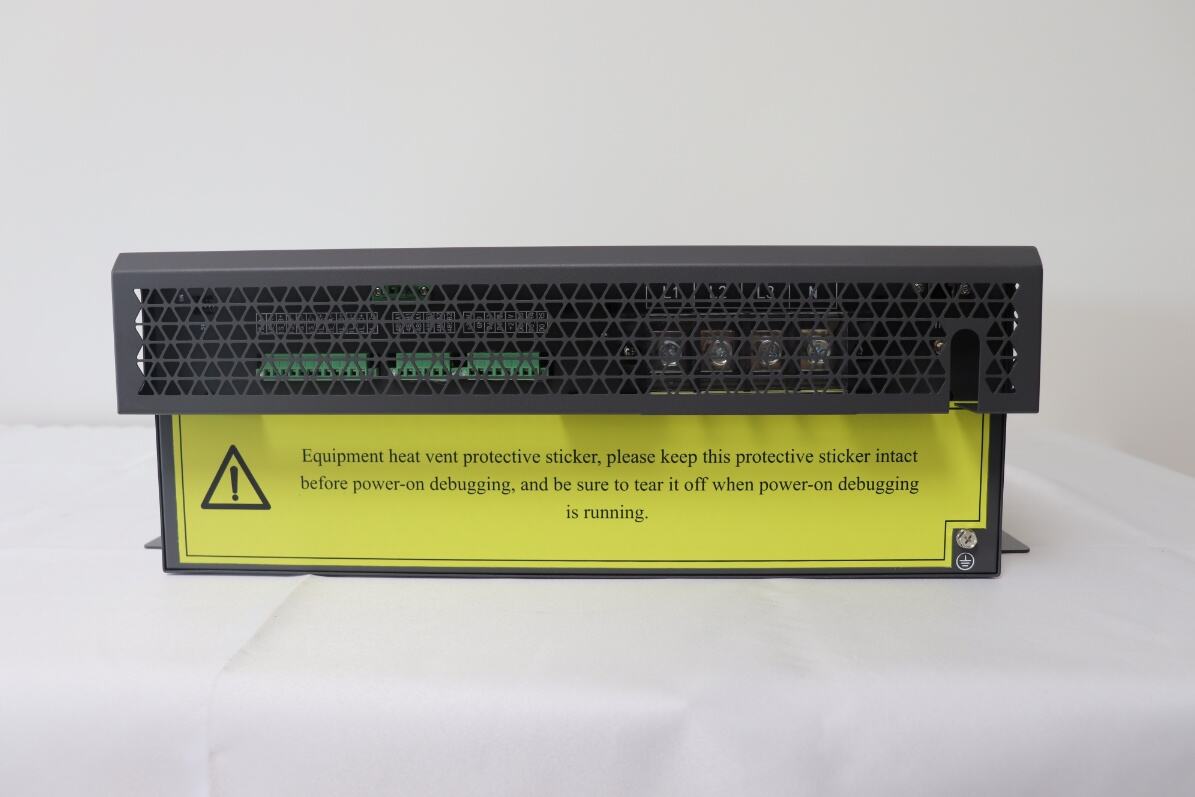

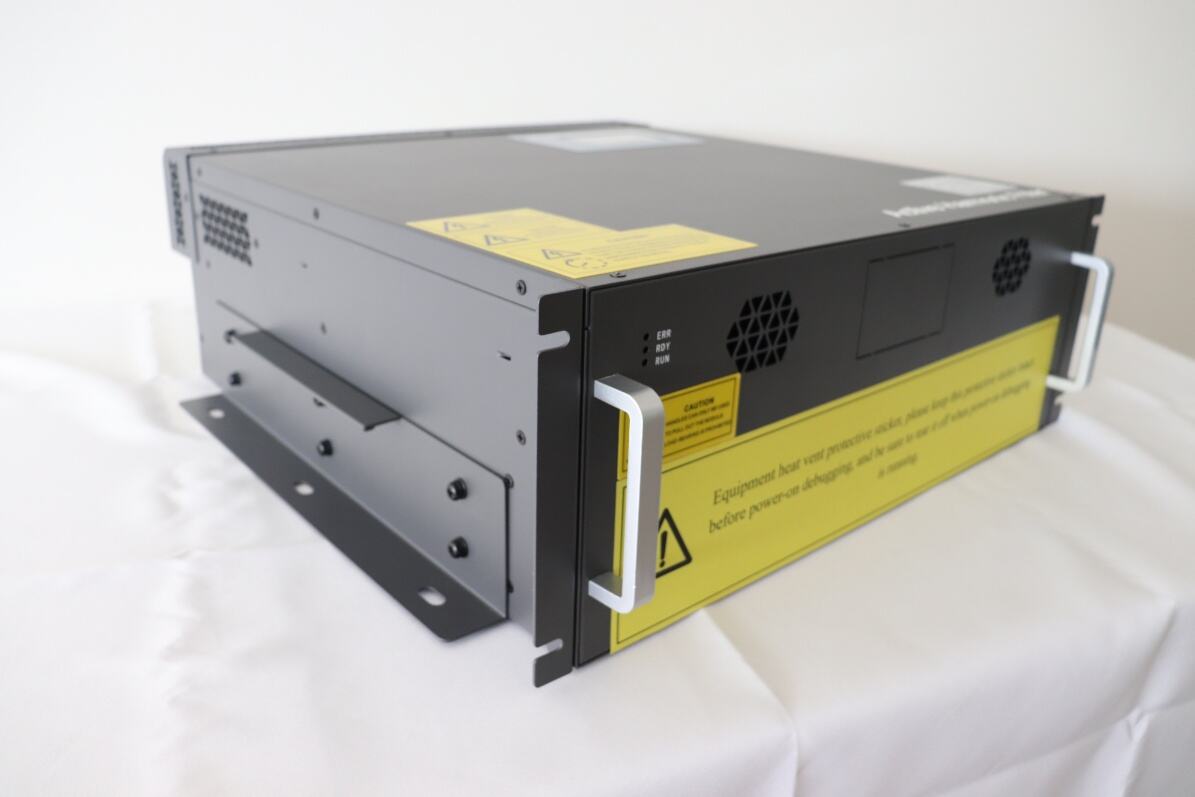

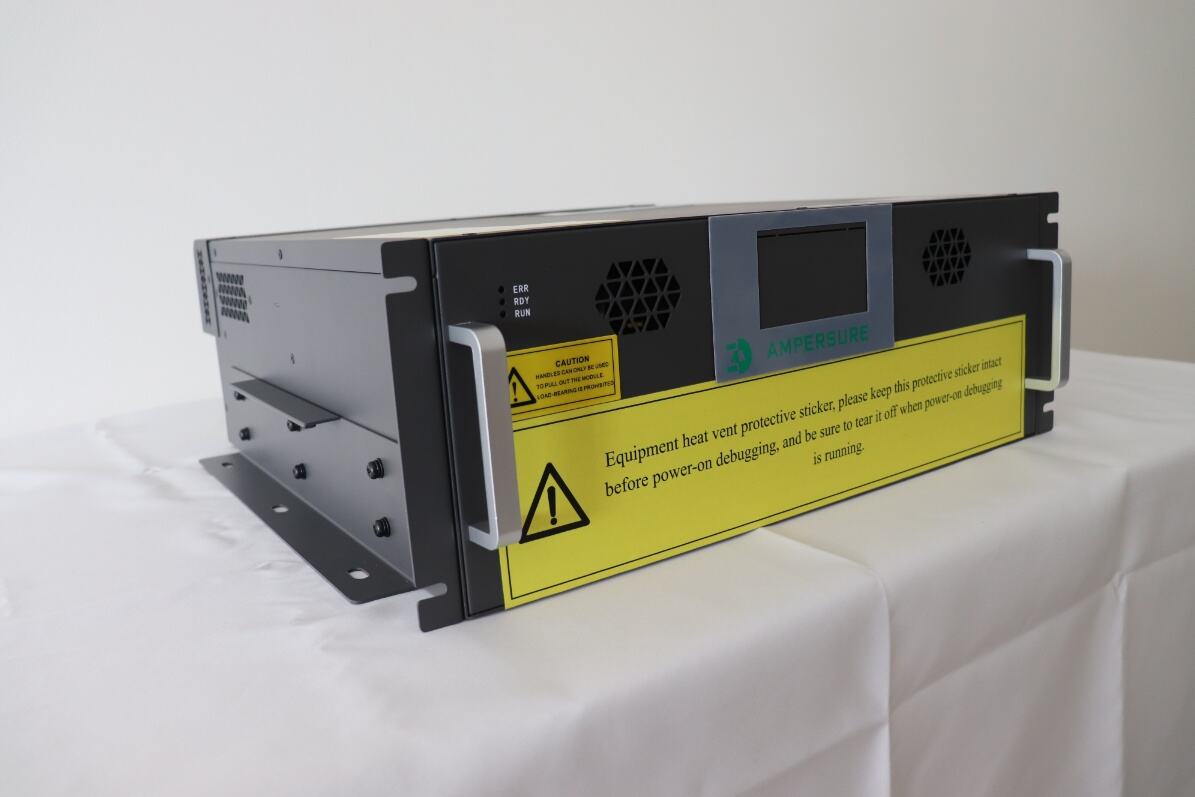

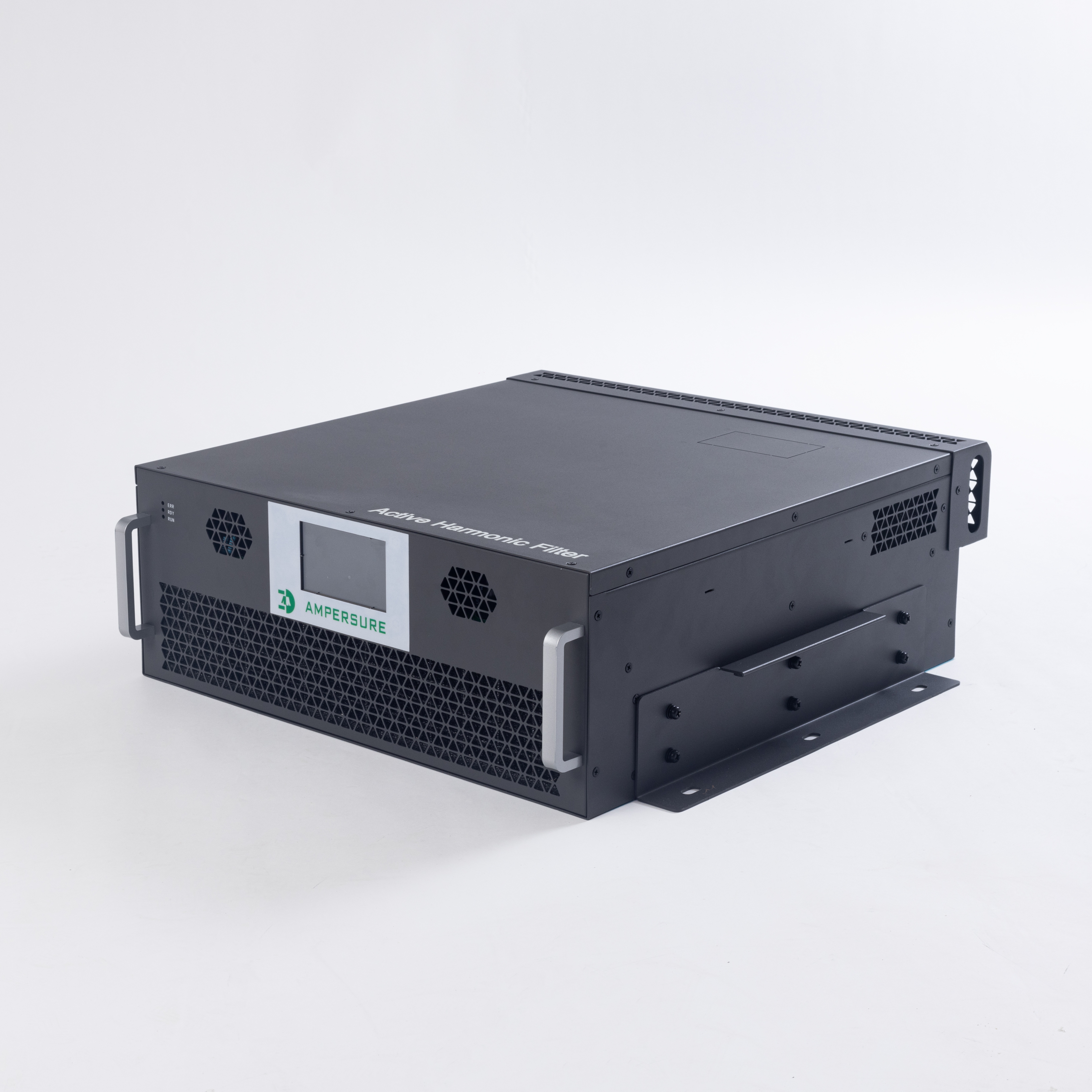

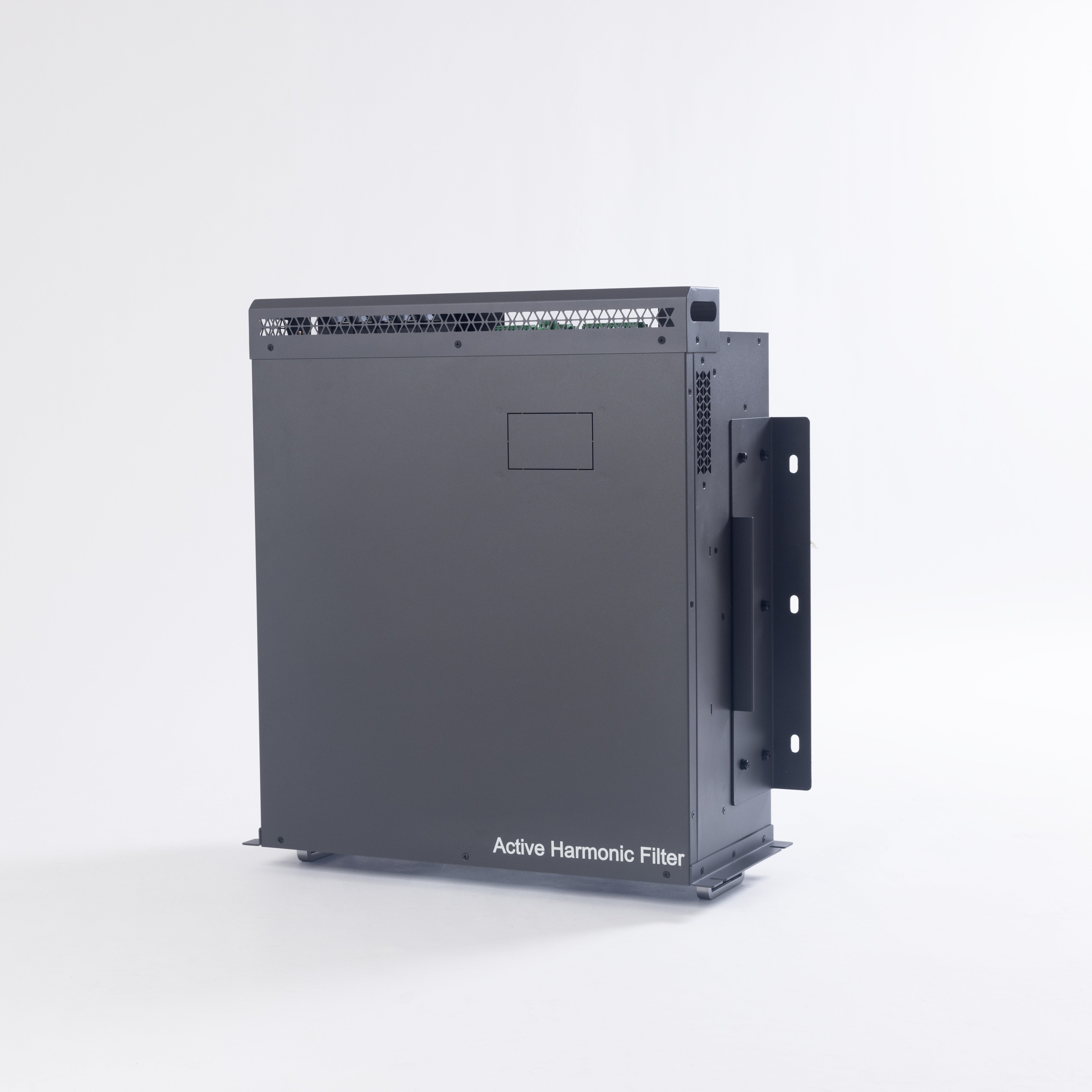

- Appearance
- Related Products
Product Overview

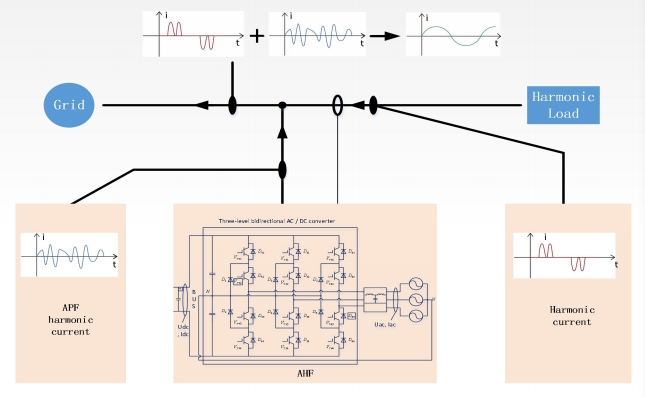

The working principle of an active harmonic flter is to detect the load current in real time.Based on a specified sub harmonic current detection algorithm,the harmonic current is gradually separated,and a control signal is generated according to the set fltering percentage to drive the IGBT to output a compensation current with the same amplitude and opposite phase as the load harmonic current,achieving the purpose of harmonic cancellation.
AHF 500V Technical Specification
|
AHF 500V Series |
||||
|
Altitude |
<2000m,Usageshouldbede-ratedaccordingtotheinternationalstandardIEC3859-2 foraltitudesabove2000meters. |
|||
|
Ambient Temperature |
-10~+50℃ (derated above 40℃) |
|||
|
Relative Humidity |
≤90%,monthly minimum temperature 25℃,nocondensation on the surface |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC500V±20% |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz~63Hz) |
|||
|
Rated Compensation Capacity |
100A |
|||
|
Power Grid Structure |
Three-phase three-wire,Three-phase four-wire |
|||
|
Numbersin Parallel |
Unlimited |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
12.8kHz |
|||
|
Function Selection |
Harmonics,Harmonics+Unbalanced |
|||
|
Compensation Scope |
2-25 times,with adjustable compensation rate per time |
|||
|
Harmonic Compensation Rate |
>92% |
|||
|
Full Response Time |
<40ms |
|||
|
Communication |
2*RS485 Communication Ports(Supports GPRS/WIFI) |
|||
|
Protection |
Overload, software/hardware over current, power grid over voltage/under voltage, power grid voltage imbalance, power failure. over-temperature, frequency abnormality, short circuit protection |
|||
|
Installation |
Rack-Mounted |
|||
|
Entry Line Method |
RearLine |
|||
|
Protection Level |
IP20 |
|||

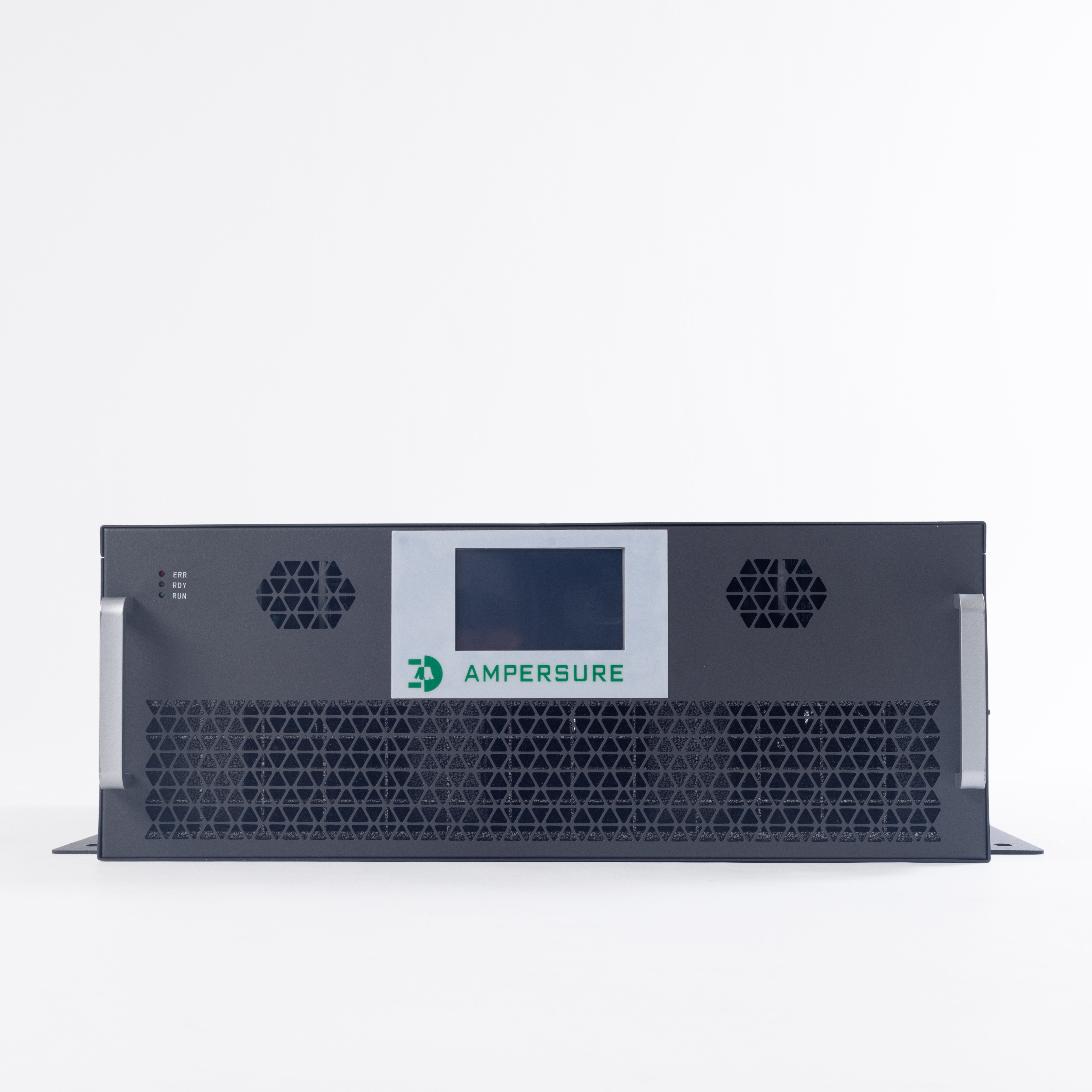

AHF 500V Product Appearance
|
Module model |
||||
|
Models |
Compensation capacity(A) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
Cooling System |
|
AMSAHF-0.5-100A/4L-R(W) |
100 |
500 |
495*675*275 |
Forced air cooling |
|
Cabinet model |
||||
|
Models |
Compensation capacity(A) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
Cooling System |
|
AMS AHF-0.5-200A/4L-C |
200 |
500 |
1000*1000*2200 |
Forced air cooling |
|
AMS AHF-0.5-300A/4L-C |
300 |
500 |
1000*1000*2200 |
Forced air cooling |
|
AMS AHF-0.5-400A/4L-C |
400 |
500 |
1000*1000*2200 |
Forced air cooling |
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
