400V Active Harmonic Filter (AHF)
-Rated Frequency: 43Hz-65Hz
-Compensating Current: 25A,50A,75A, 100A,150A
-Harmonic Compensation Rate: >92%
-Efficiency: >97%
-Installation: Rack-mounted, Wall-mounted
-Power grid connection: 3-Phase 4-Wire, 3-Phase 3-Wired
- Overview
- Specification
- Apparence
- Related Products
Product Overview
The working principle of an active harmonic flter is to detect the load current in real time.Based on a specified sub harmonic current detection algorithm,the harmonic current is gradually separated,and a control signal is generated according to the set fltering percentage to drive the IGBT to output a compensation current with the same amplitude and opposite phase as the load harmonic current,achieving the purpose of harmonic cancellation.
AHF 400V Technical Specification
|
AHF 400V Series |
||||
|
Altitude |
<2000m,Usageshouldbede-ratedaccordingtotheinternationalstandardIEC3859-2 foraltitudesabove2000meters. |
|||
|
Ambient Temperature |
-10~+50℃ (derated above 40℃) |
|||
|
Relative Humidity |
≤90%,monthly minimum temperature 25℃,nocondensation on the surface |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC380V (-20%~+20%) |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz~63Hz) |
|||
|
Rated Compensation Capacity |
25A,50A,75A, 100A,150A |
|||
|
Power Grid Structure |
Three-phase three-wire,Three-phase four-wire |
|||
|
Numbersin Parallel |
Unlimited |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
16kHz |
|||
|
Function Selection |
Harmonics,Harmonics+Unbalanced |
|||
|
Compensation Scope |
2~50 times,with adjustable compensation rate per time |
|||
|
Harmonic Compensation Rate |
>92% |
|||
|
Full Response Time |
<40ms |
|||
|
Communication |
2*RS485 Communication Ports(Supports GPRS/WIFI) |
|||
|
Protection |
Overload, software/hardware over current, power grid over voltage/under voltage power failure. over-temperature, frequency abnormality, short circuit protection |
|||
|
Installation |
Rack-Mounted,Wall-Mounted |
|||
|
Entry Line Method |
Rear Inlet(rack-mounted), Top Inlet(wall-mounted) |
|||
|
Protection Level |
IP20 |
|||

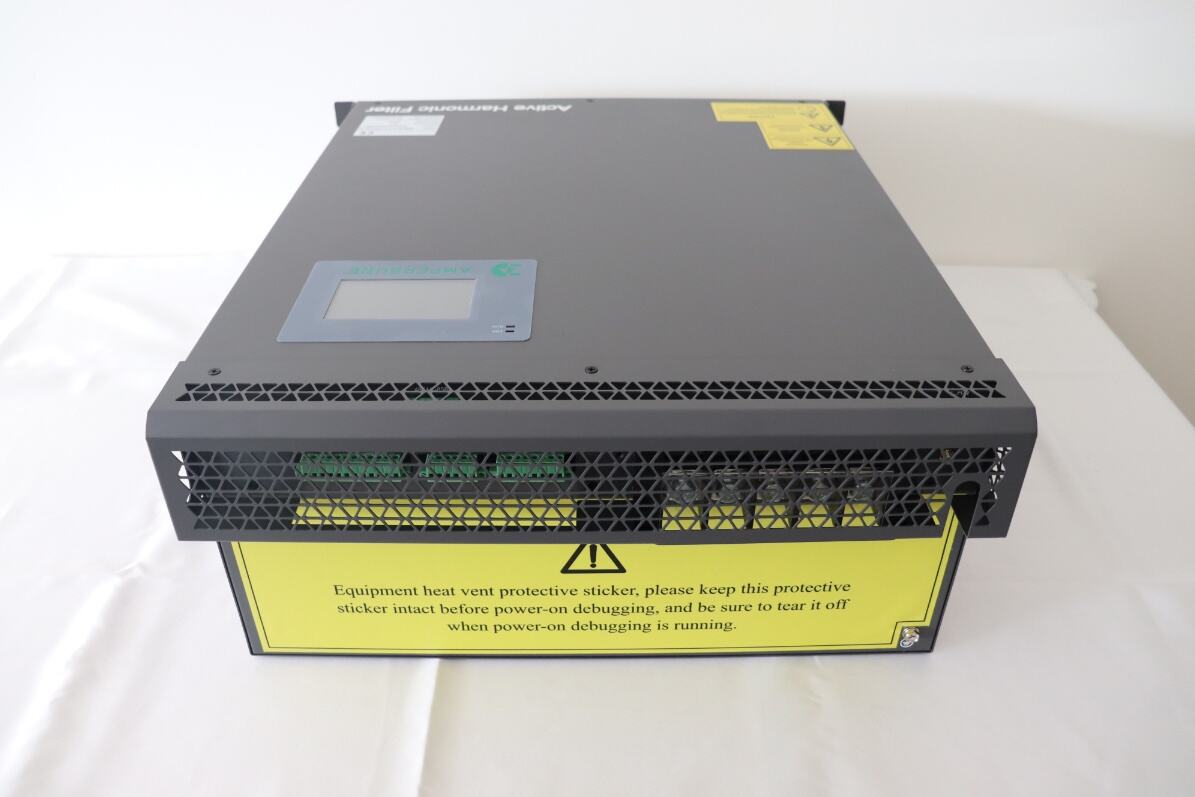

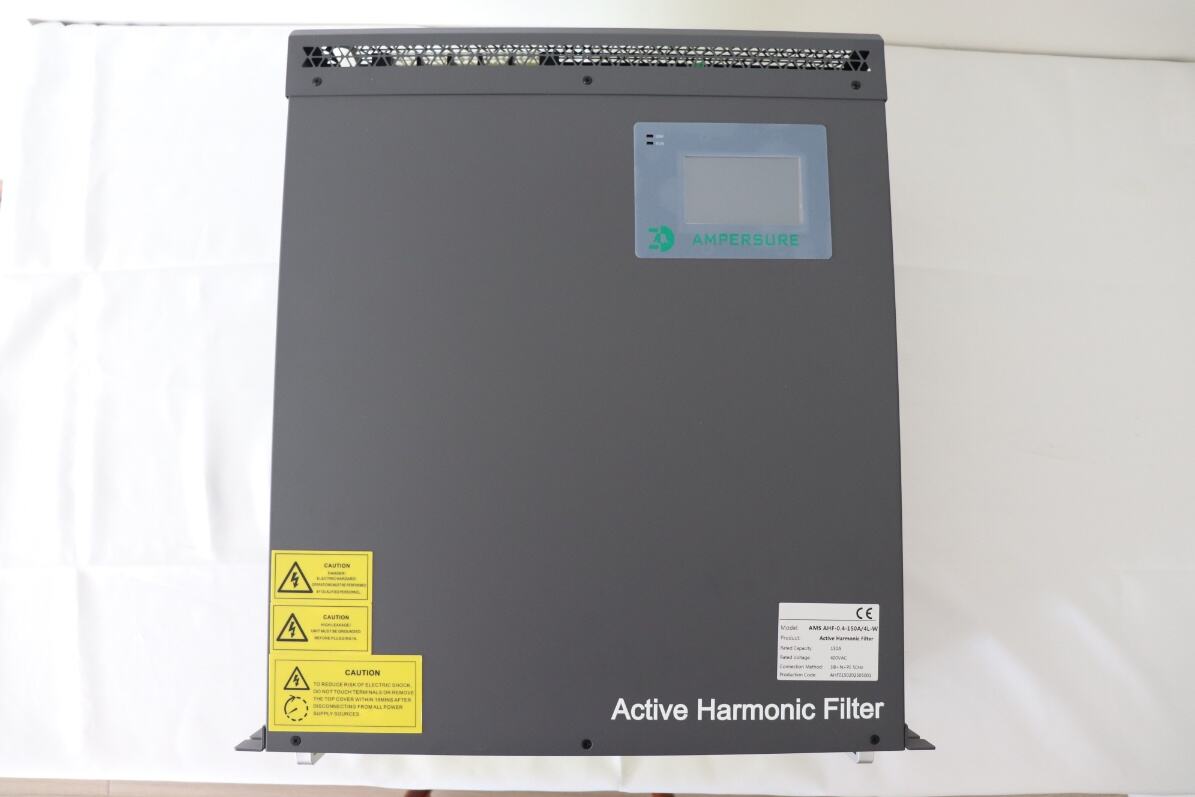

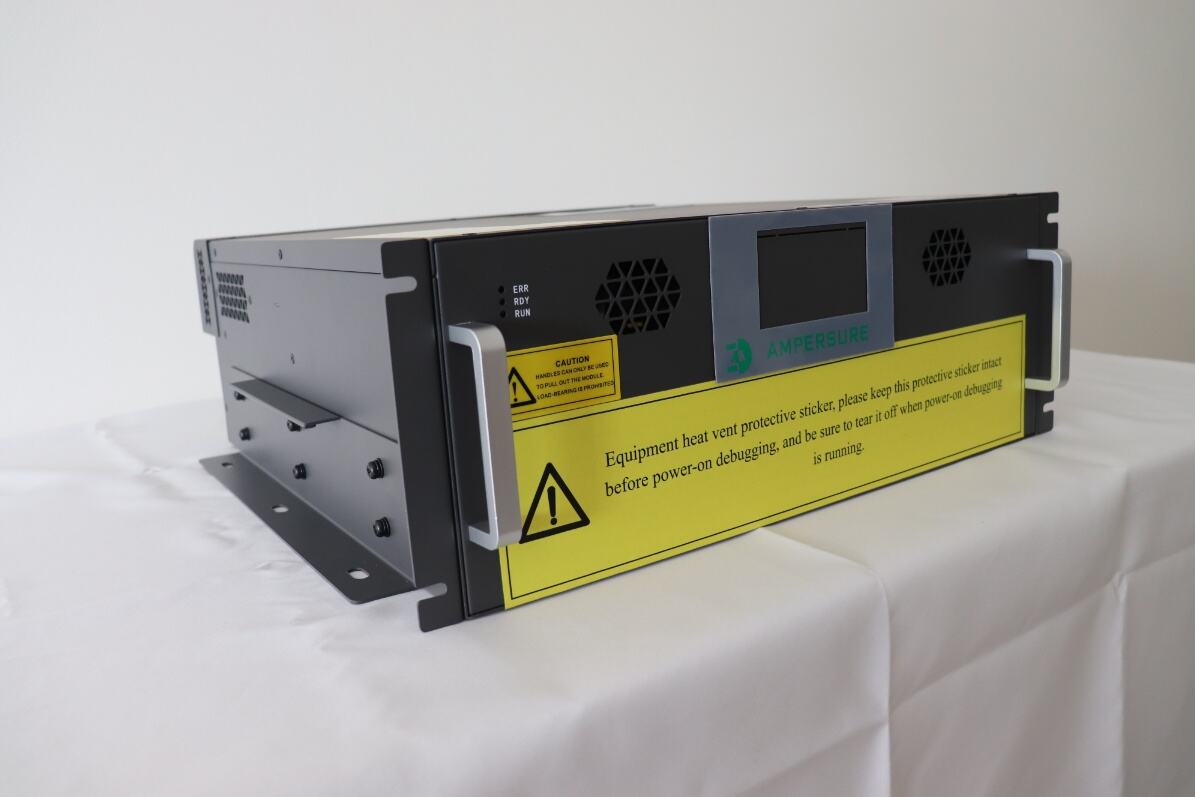

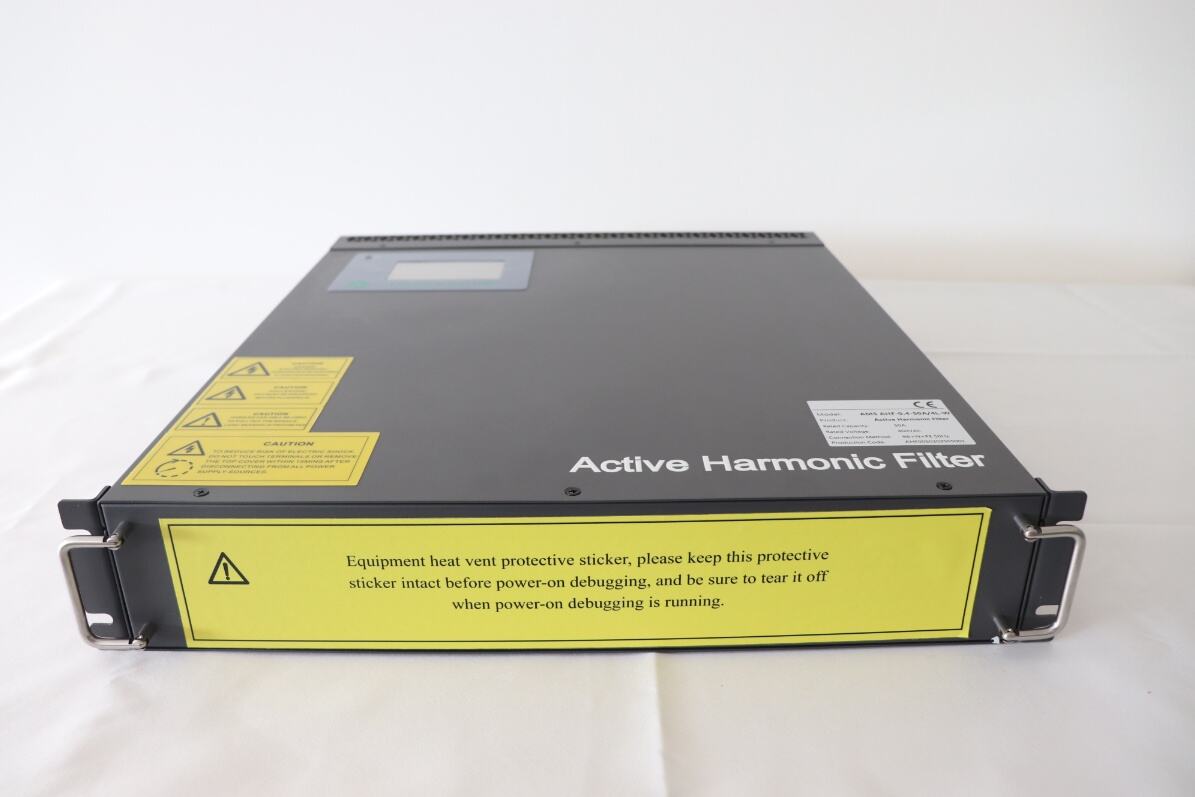

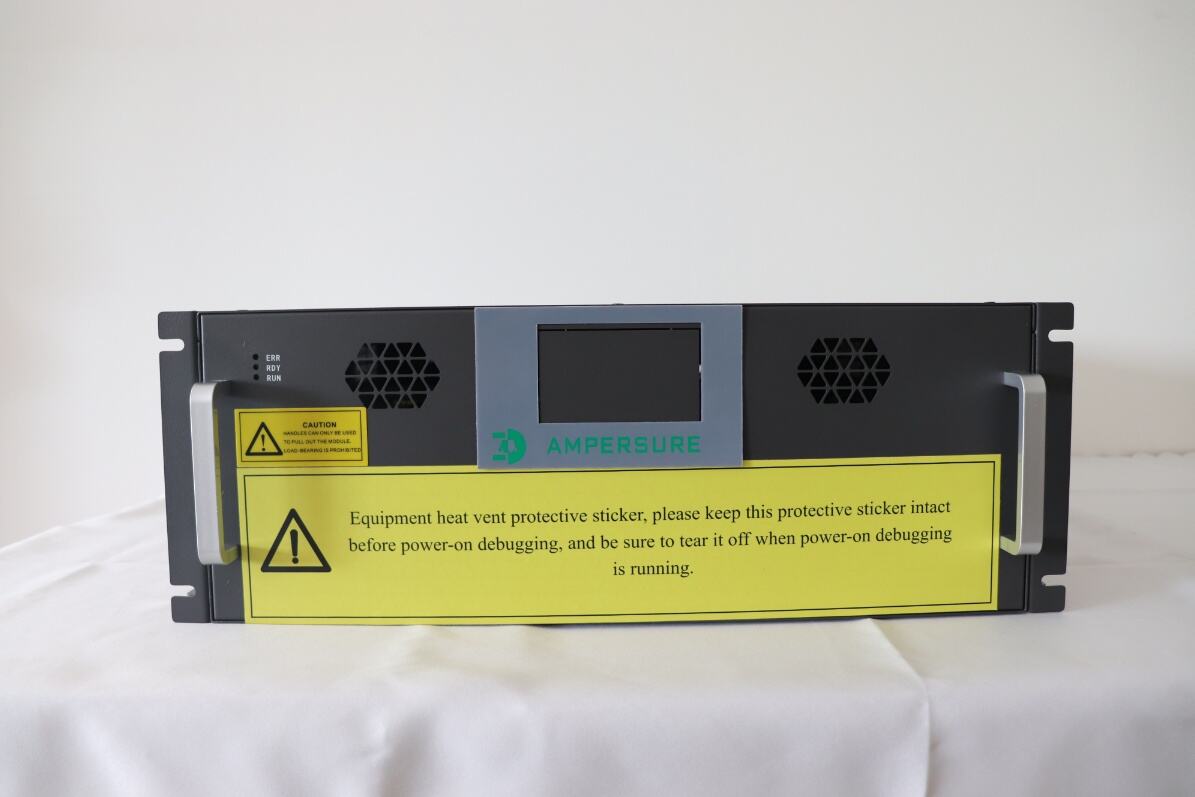

AHF 400V Product Appearance
|
Module model |
||||
|
Models |
Compensation capacity(A) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
Cooling System |
|
AMSAHF-0.4-25A/4L-R(W) |
25 |
400 |
460*490*89 |
Forced air cooling |
|
AMS AHF-0.4-50A/4L-R(W) |
50 |
400 |
460*490*89 |
Forced air cooling |
|
AMS AHF-0.4-75A/4L-R(W) |
75 |
400 |
500*510*190 |
Forced air cooling |
|
AMSAHF-0.4-100A/4L-R(W) |
100 |
400 |
500*550*240 |
Forced air cooling |
|
AMS AHF-0.4-150A/4L-R(W) |
150 |
400 |
500*550*240 |
Forced air cooling |
|
Cabinet model |
||||
|
Models |
Compensation capacity(A) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
Cooling System |
|
AMS AHF-0.4-200A/4L-C |
200 |
400 |
1000*1000*2200 |
Forced aircooling |
|
AMS AHF-0.4-250A/4L-C |
250 |
400 |
1000*1000*2200 |
Forced air cooling |
|
AMS AHF-0.4-300A/4L-C |
300 |
400 |
1000*1000*2200 |
Forced air cooling |
|
AMSAHF-0.4-400A/4L-C |
400 |
400 |
1000*1000*2200 |
Forced air cooling |
|
AMS AHF-0.4-500A/4L-C |
500 |
400 |
1000*1000*2200 |
Forced air cooling |
|
AMS AHF-0.4-600A/4L-C |
600 |
400 |
1000*1000*2200 |
Forced air cooling |
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
